Photos

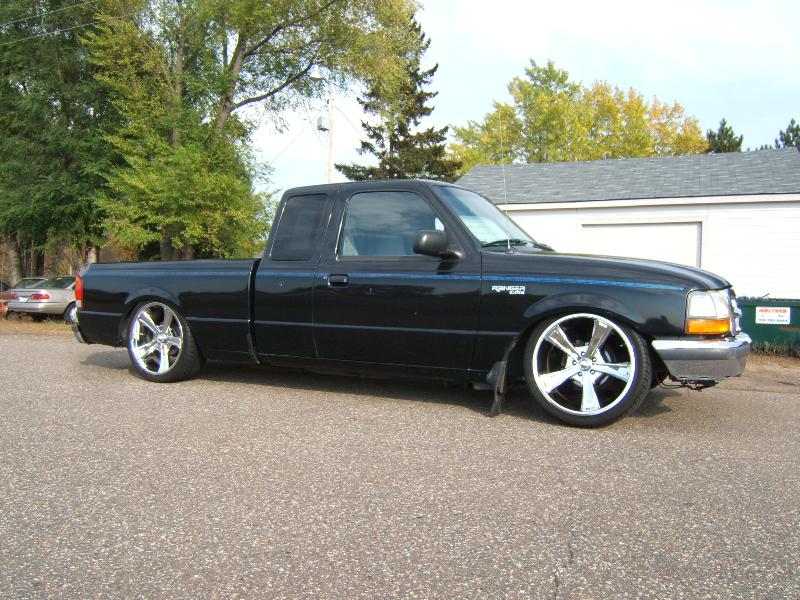

Pic with the old suspension
2009-05-09

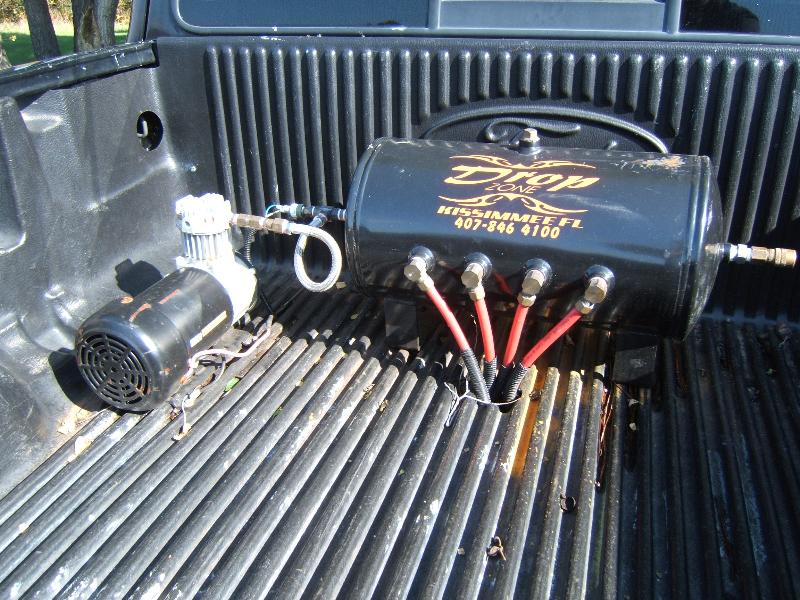

old tank and comp setup. The tank isn't bolted to the bed floor
2009-05-09

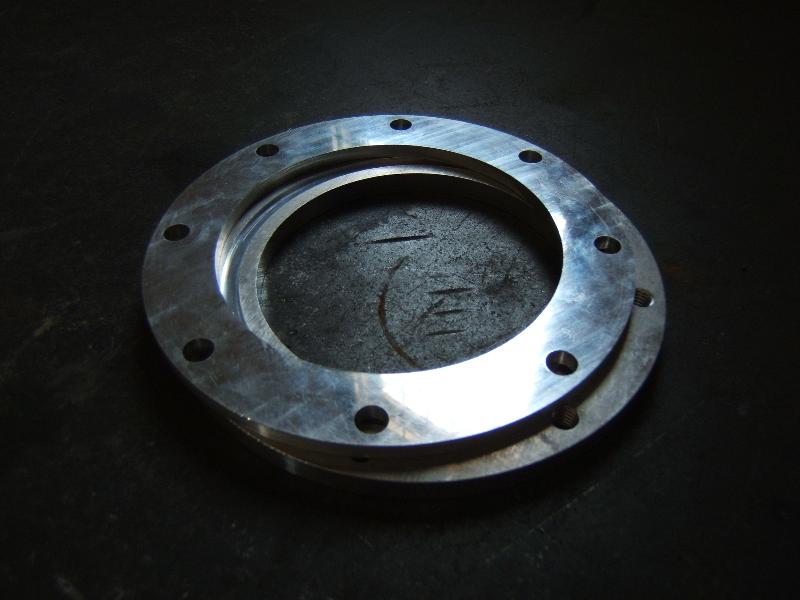

fuel cell adapter rings we make. You need one let us know.
2009-05-09

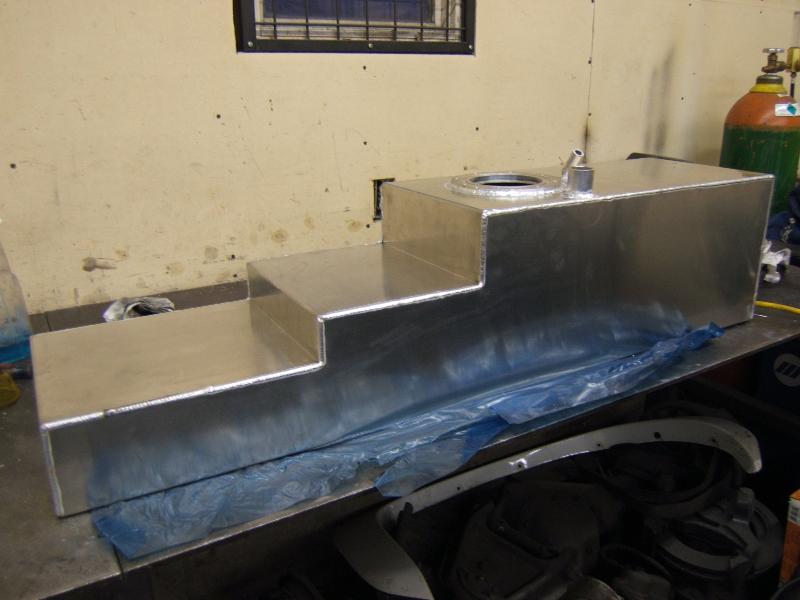

22 gallon fuel cell built in house
2009-05-09

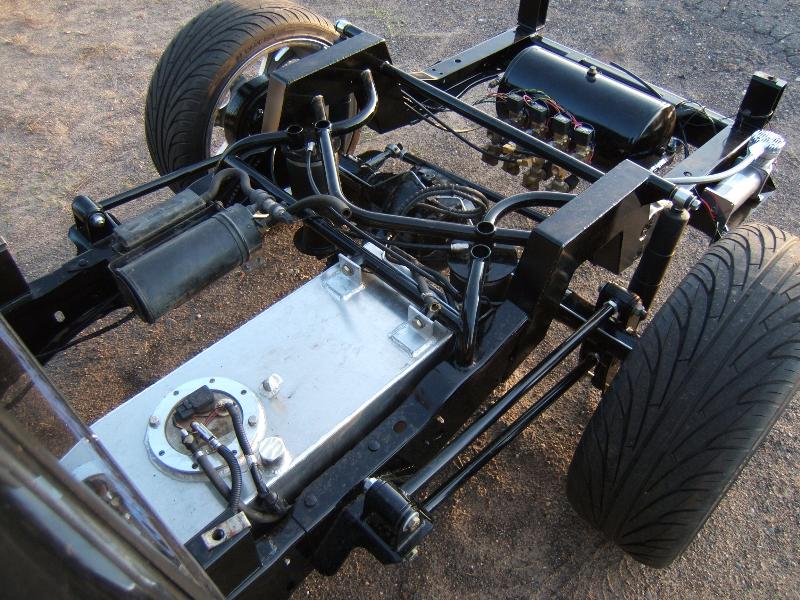

new setup www.crazytalkcustoms.com
2009-05-09

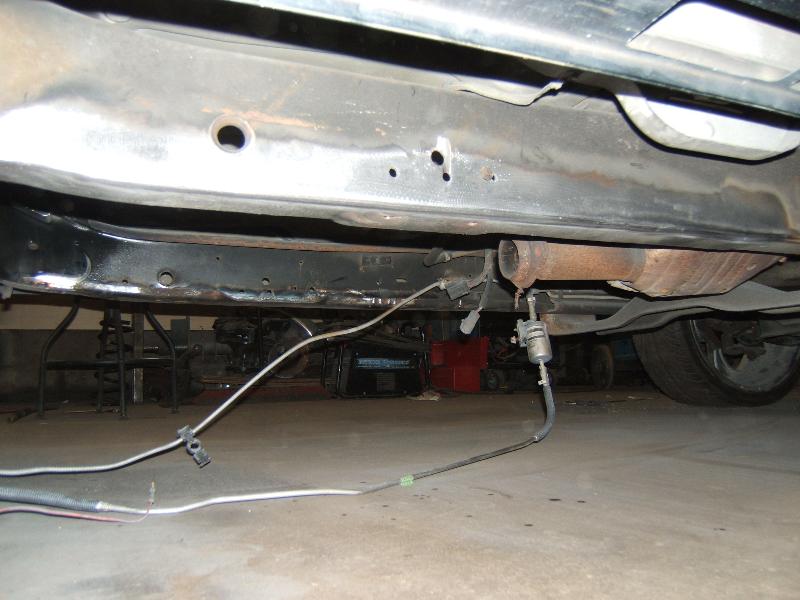

shaved the hump off the frame so it will lay fully flat.
2009-05-09

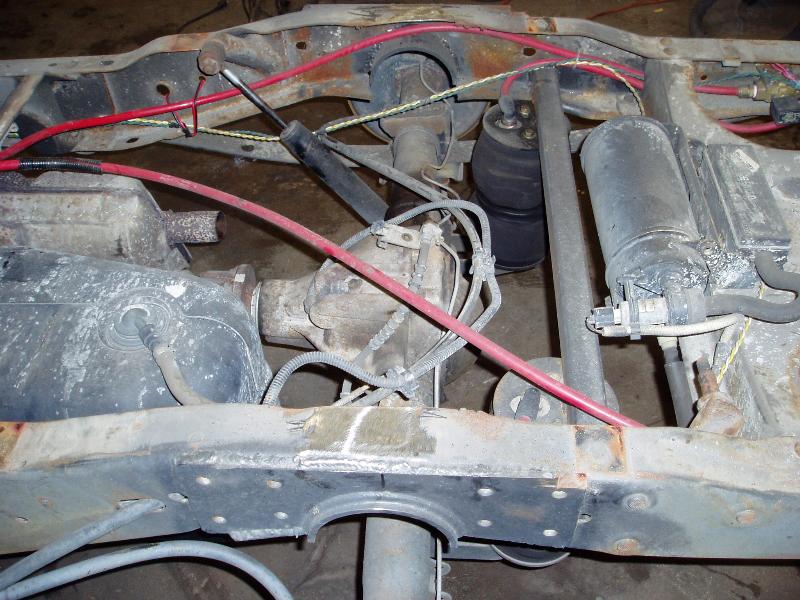

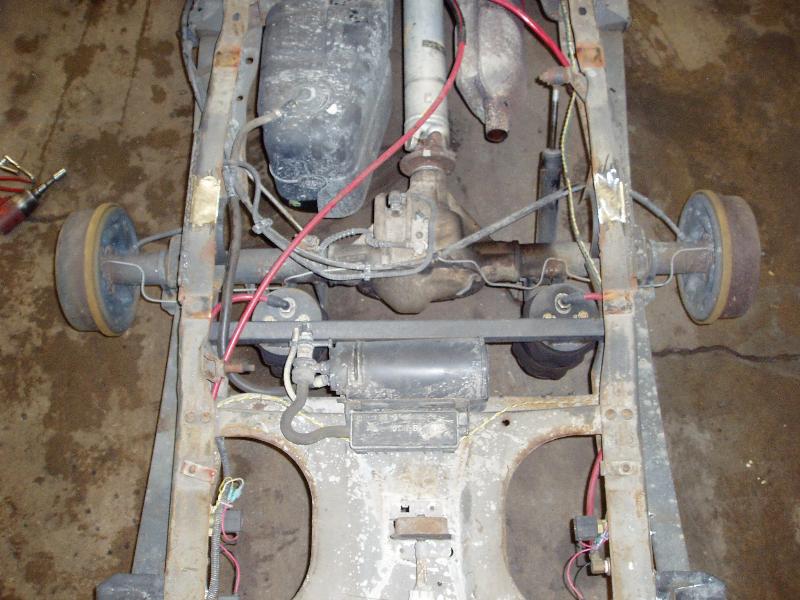

old setup by drop zone in kissimmee fl, it was all wacked out mono leaf with slams behind axle and only one shock for the whole truck
2009-05-09

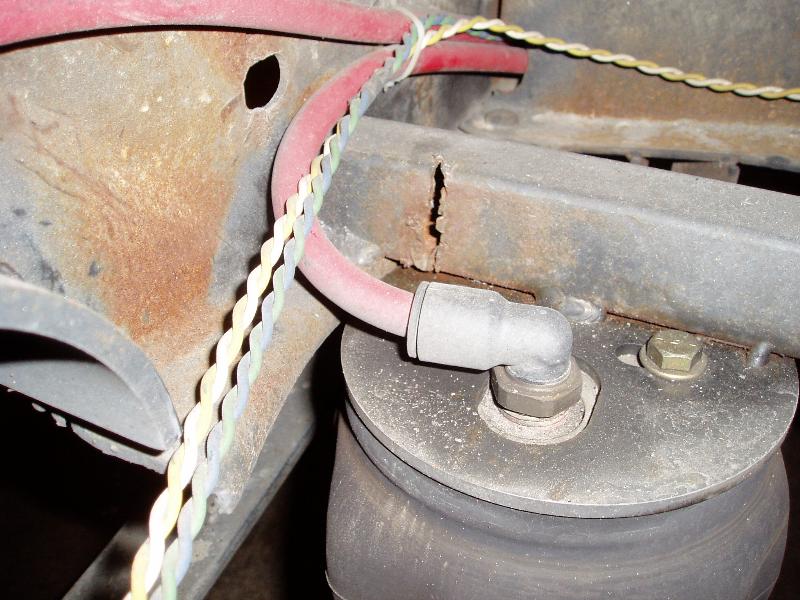

old setup by drop zone
2009-05-09
old setup by drop zone
2009-05-09

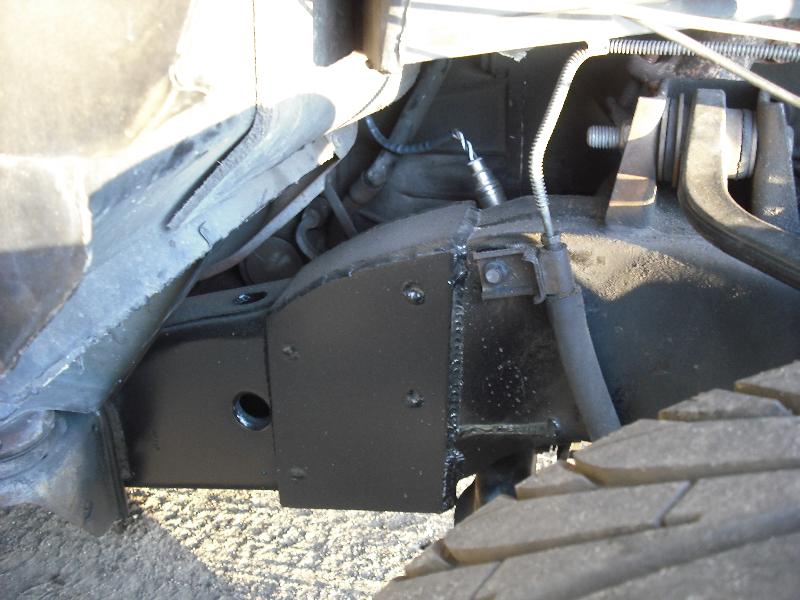

start of the Z
2009-06-01
2009-06-02
2009-06-01
2009-06-10
Exterior
bed body dropped 5.5"
Suspension

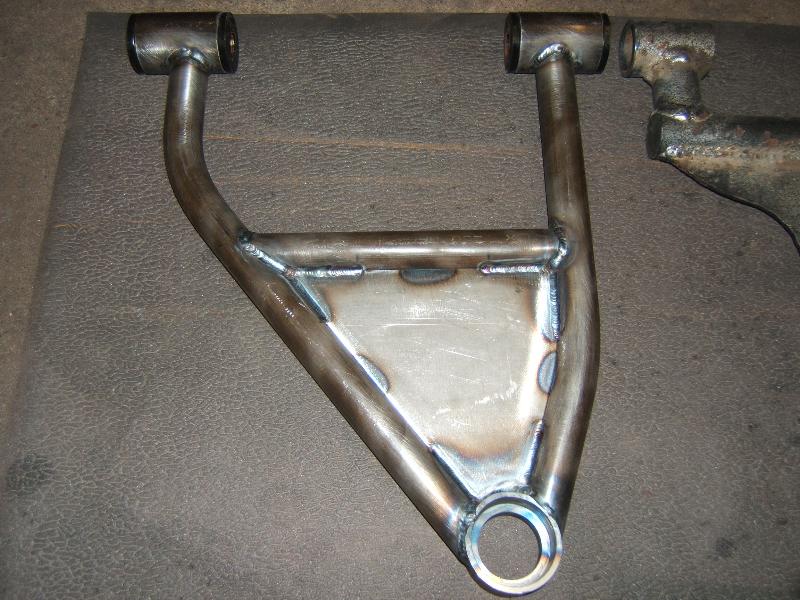

slam re6 in the front with custom tubular upper and lower control arms, parallel 4-link in the back with sleeves in front of the axle, panhard bar, bilstein shocks front and rear. Viair 480 comps,8- 1/2" smc valves, custom 22 gallon fuel cell in the stock location raised 1.5 above the rail. 2 piece drive shaft conversion. 2" Z, dehumped frame rails. www.crazytalkcustoms.com
Wheels
20" Panther Ocatanes with 255/35/20" tires
Future Plans
Stainless headers and exaust.
