ENGINE CODE: 4ZE1
TYPE: Alumminum head, iron block, inline 4.
VALVETRAIN: SOHC, 2 valves per cylinder
DISPLACEMENT: 2.6L
BORE x STROKE: 92.6MM x 95MM
COMPRESSION RATIO: 8.3:1
INTERNAL MODIFICATIONS
Calmini Camshaft
EXTERNAL ENGINE MODIFICATIONS

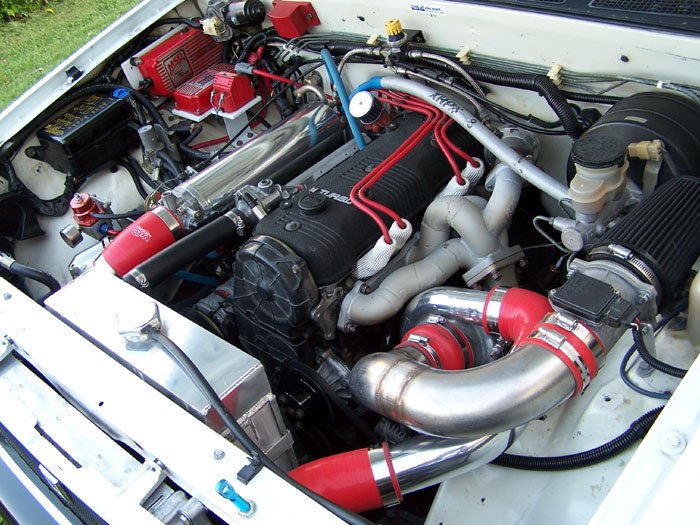

Turbo/Exhaust System
- one off tubalar exhuast manifold with VHT ceramic coating
stainless steel flanges and hardware
- Garrett T60-1 w/ T3 exhaust housing(for some very quick spool)
- TiAL 38mm Wastegate
- 19.5"x12.5"x2" Mitsubishi Fuso intercooler with custom outlets
- Aluminum intercooler pipies 2.5" form turbo to i/c, 2.75"
front i/c to throttle body
- HTS(High Temp Silicone) 4 ply connectors
- HKS SSQV Blowoff Valve
- HKS Hi-Power Ti, Megan Racing resonator, 3" stainless piping
and flanges, copper gasket.
Intake Manifold/Cooling/Oli system:
- Custom made 12"x 4" dia. aluminum intake manifold
- Custom Fabricated 16"x15"x4" aluminum raidiator
- SPAL 1,750 CFM electric fan
- 2nd Gen RX-7 oil cooler
- XRP stainless braided hoses and fittings
- Isuzu Piazza Turbo oil filter block
ENGINE MANAGEMENT
Fuel Delivery:
- JDM Denso Supra TT fuel pump
- 3/8" aluminum fuel lines
- XRP aluminum fittings
- Aeromotive fuel filter and Fuel Pressure Regulator
- Isuzu Piazza Turbo fuel rail(bored out)
- DSM 450cc injectors.
Engine Management:
- Greddy E-Manage
- Full MSD ignition system:6AL, BTM, Blaster 2 coil, Tach
Adapter and 8.5mm wires
- NGK Spark Plugs
- Isuzu 80mm MAF
- custom made manual boost controller
- misc. braided lines and XRP fittings
- Optima Red top battery relocated to bed in Moroso Battery Box
Body and Apperance Mods:
- Stillen front aero kit
- hand made grill
- old school JDM Isuzu emblem
- Fairlday Z31 hood scoop(functional)
- Cusco hood pins
- custom welded roll pan with exhuast cut out
- custom made bed cover
- Benen Industires Tow Hooks
- Isuzu "Pure White" and "Gloss Black" paint
- Authenitc JDM Option 2 decal and JAF towing decal
- HKS Badge
- JDM OEM lighting(IKI and Koito)
- Sylvania Silverstar H4 bulbs
Rodeo headlights
Seats: 2002 JDM Toyota Celica seats with custom sliders
Harnesses: Sparco 4 point Clubman Harnesses
Guages: AutoMeter(Boost, Air/Fuel Ratio, EGT)
Steeringwheel: Grant Formula GT 3 spoke (330mm)
Electronics: Trust/Greddy Turbo Timer(hidden in Ash Tray), and E-Manage in glove box.
Misc
- XS Model Dash
- JDM OEM Shift knob and boot
- JDM OEM A/C Vents (black to accent the interior better)
- JDM interior(came stock ^.^) very few trucks came from Japan
with thoes options.

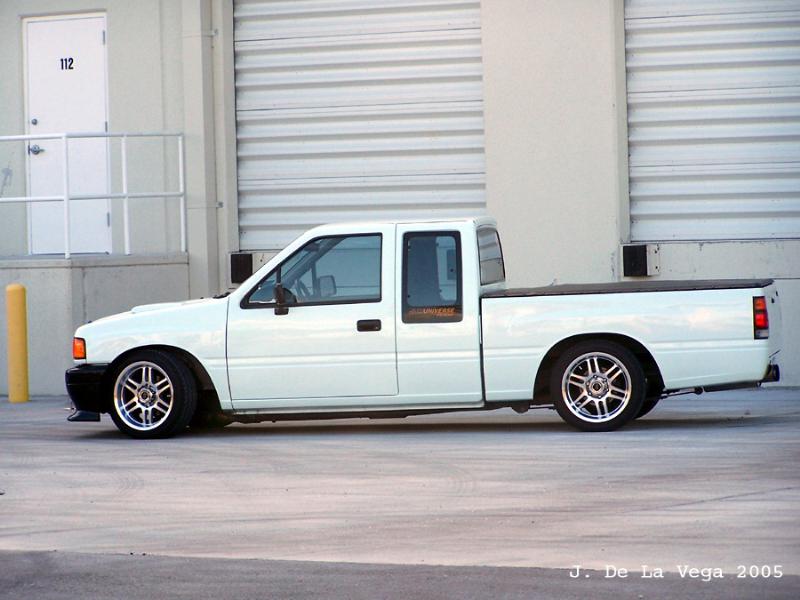

FRONT:
- 2" lowering spindles from Chassis Tech
- KYB shocks w/ polyurethane bushings
- Assco 1" Sway Bar w/ polyurethane bushings
- Sway-A-Way Torsion Bars
REAR:
- AIM industries 3" drop leaf springs and 2" blocks
- Tenneco Automotive Load Adjusting Shock Absorbers(coil overs)
- Full polyurethane bushings
WHEELS, TIRES, BRAKES
(F) 17x8-inch Enkei RTS with 225/45-17 Falken Zeix 512
(R) 17x8-inch Enkei RTS with 255/40-17 Falken Zeix 512
(F) Isuzu Rodeo V-6 brake upgrade(11" rotors over the 10" stock ones) using Crossdrilled/slotted rotors, Rodeo V-6 brake calipers, Hawk Ferro pads, custom braided brake hoses.
(R) Crossdrilled/slotted rotors and KVR Carbonfiber pads
Pioneer Head Unit, Audiobahn 4" coaxcial speakers, 6"x9"Kicker Free Air
Subwoofers, Kenwood 4 channel amp (Mid and Highs), US Acoustic 2 channel
amp(lows), Coustic 3way electronic crossover.
2004 shows and awards recived:
- Tuner Bash; Daytona Beach, FL: 3rd Place "Other Import"
- NHRA Stylefest; Moroso Motorsports Park, WPB, FL: "BEST MINI
TRUCK"
- Falken Tire Drift Showoff; Miami Homestead Speedway, Homestead, FL: "BEST OF SHOW TRUCK/SUV"
- DUB Show, Miami Beach Convention Center, Miami Beach, FL: "2nd place Mini mild"
- Underground Showoff, Miami Beach Convention Center, Miami Beach, FL: "BEST IMPORT TRUCK"
- NOPI, Moroso Motorsports Park, WPB, FL: "2nd Place Mini Street"
2005 shows and awards recived:
- NHRA Stylefest; Moroso Motorsports Park, WPB, FL: "BEST MINI
TRUCK"
- NOPI, Moroso Motorsports Park, WPB, FL: "1st Place Mini Truck
Street"
Widebody, lower it more with a custom 4 link and convert front to coil over suspension, roll cage.
