1952 Studebaker Truck

FXDGRND (3 owner profiles)
Purchased: 2011-05-15

Photos

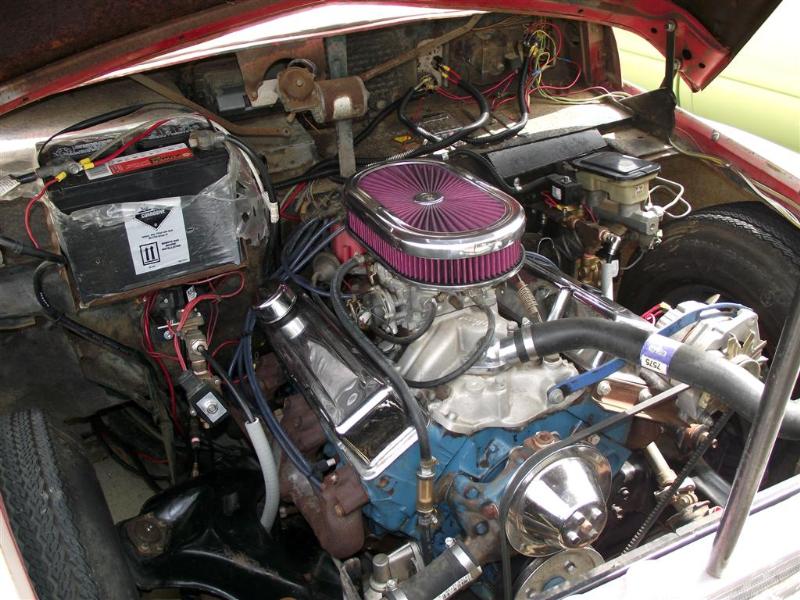

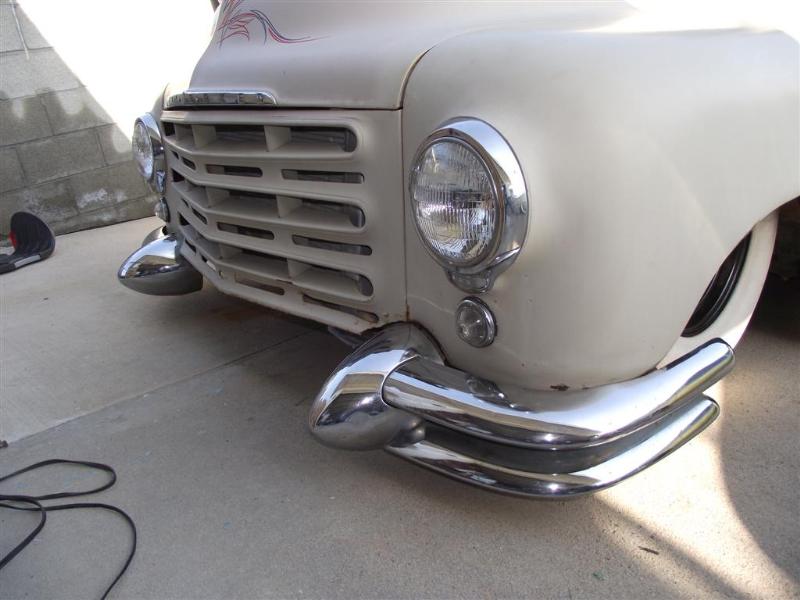

Polished all the chrome
Polished all the chrome 2011-06-18

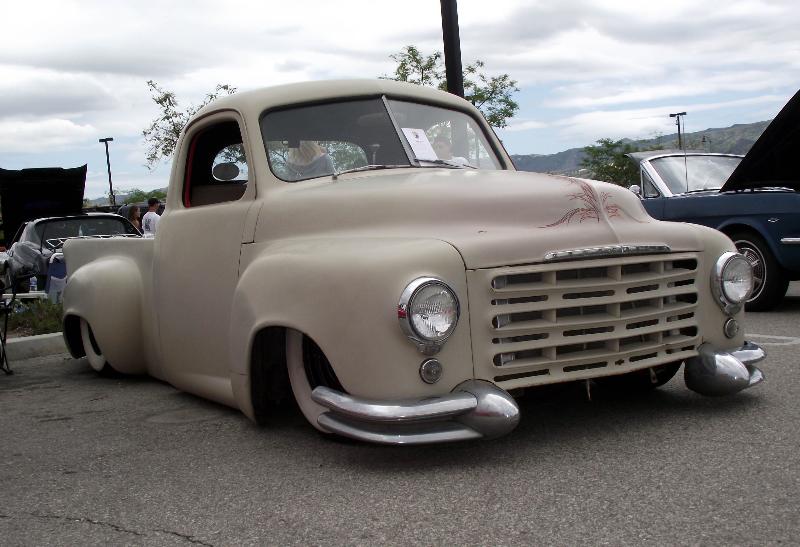

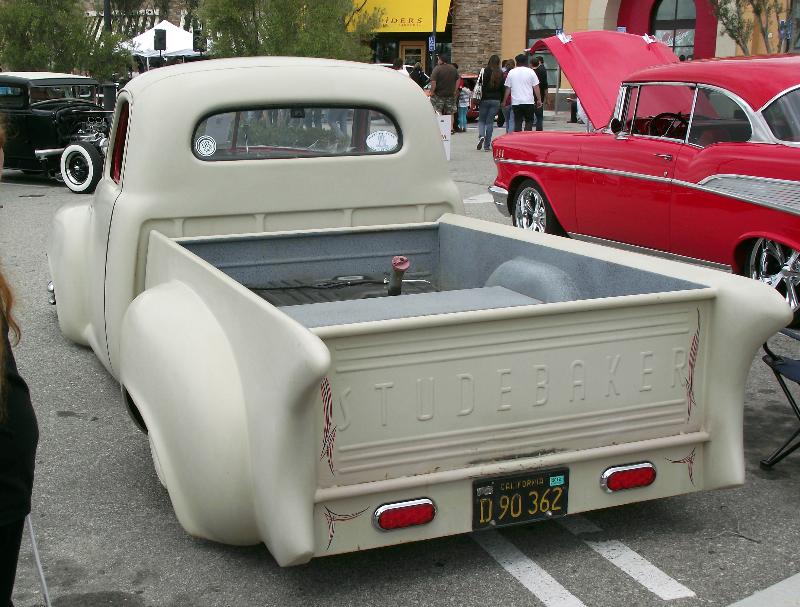

Cop's n' Cruisers first show
Cop's n' Cruisers first show 2011-06-05
2011-06-03
2011-06-03
2011-06-18
2011-06-03
2011-06-03
Cleaned up and Painted Crossmember
Cleaned up and Painted Crossmember 2011-06-03
2011-06-05

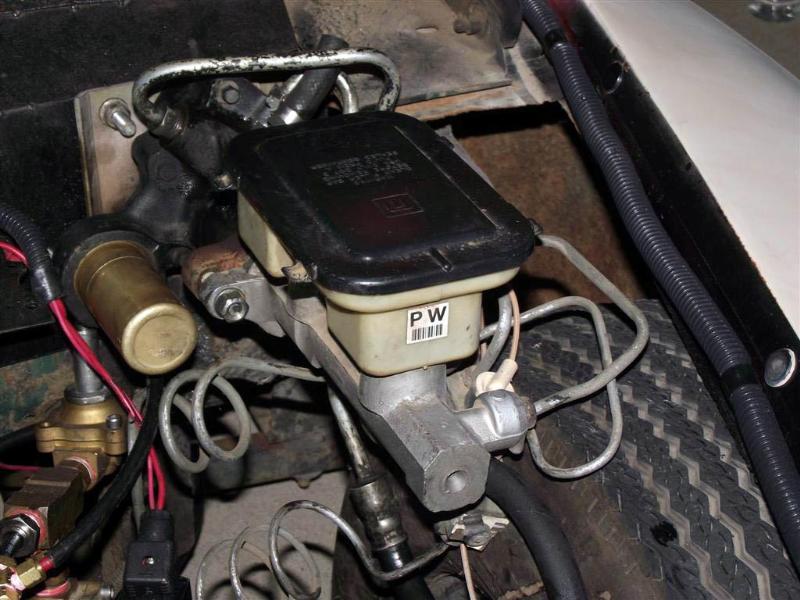

Hydroboost mocked up. It will need to be moved over some to clear the tires.
Hydroboost mocked up. It will need to be moved over some to clear the tires. 2011-07-17

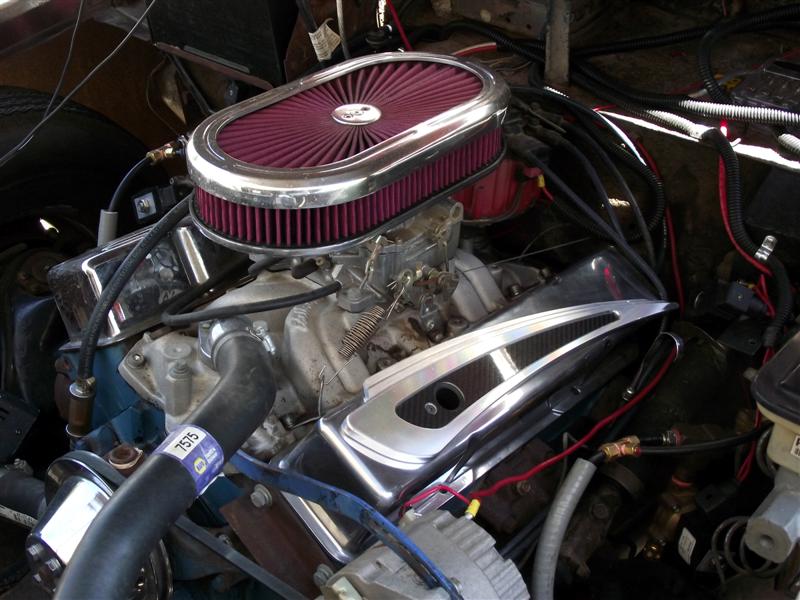

March Performance Valve covers
March Performance Valve covers 2011-07-18
2011-08-22
2011-08-22

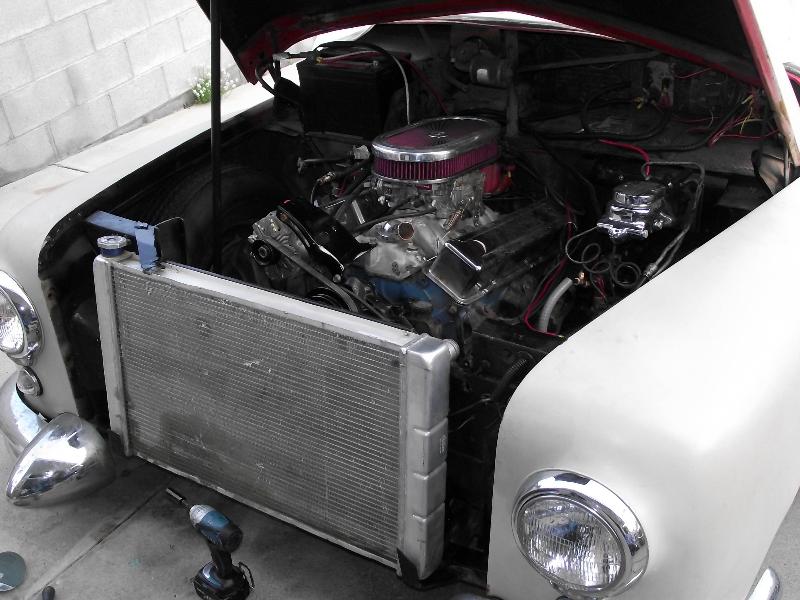

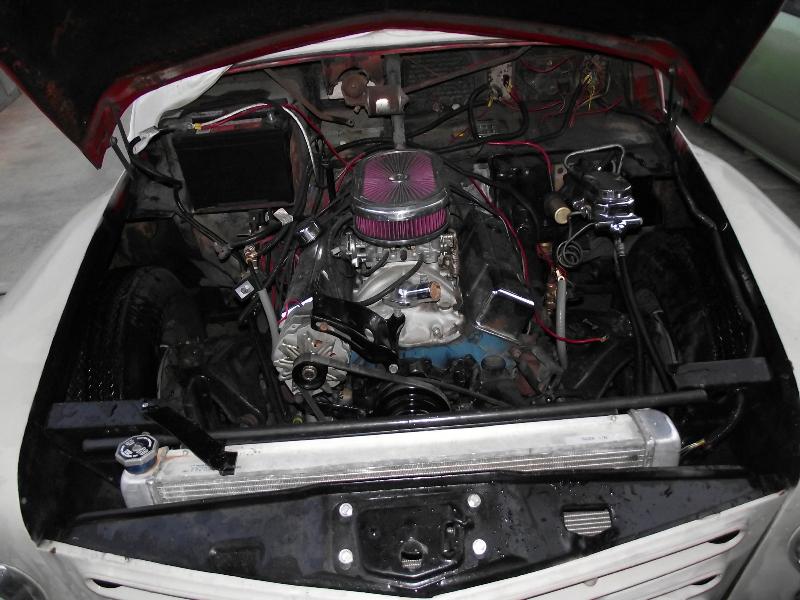

Capped frame. New Radiator mounts
Capped frame. New Radiator mounts 2011-09-12
2011-09-12

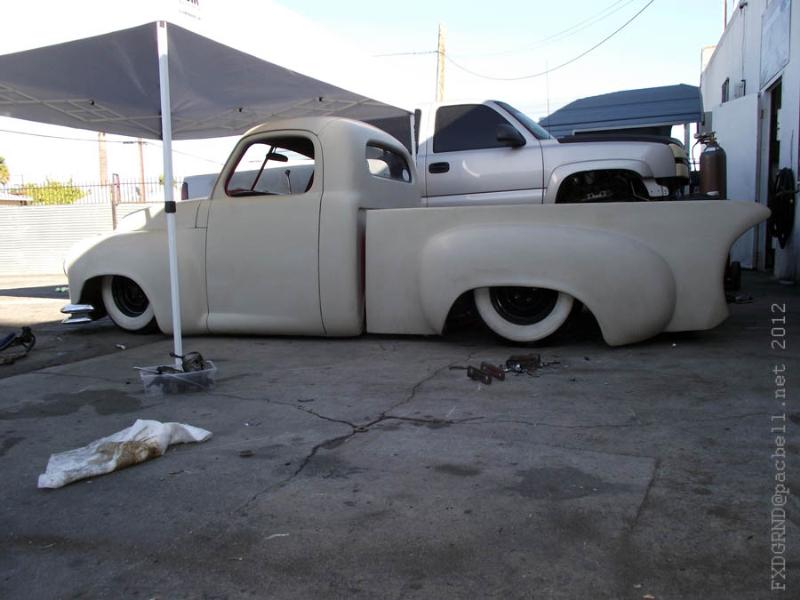

Back on the ground for now. Lower link bars in. Notch forward plated.
Back on the ground for now. Lower link bars in. Notch forward plated. 2012-07-05

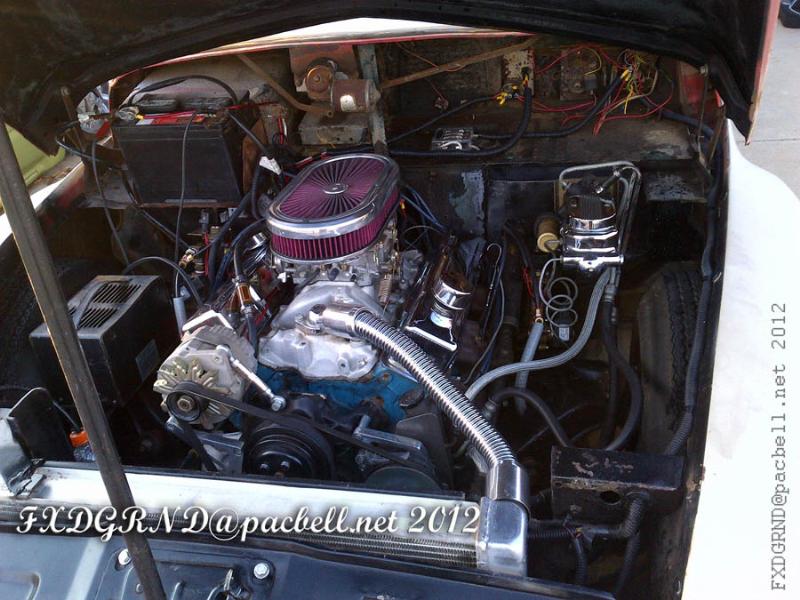

Engine compartment cleanup and upgrades continue
Engine compartment cleanup and upgrades continue 2012-07-05

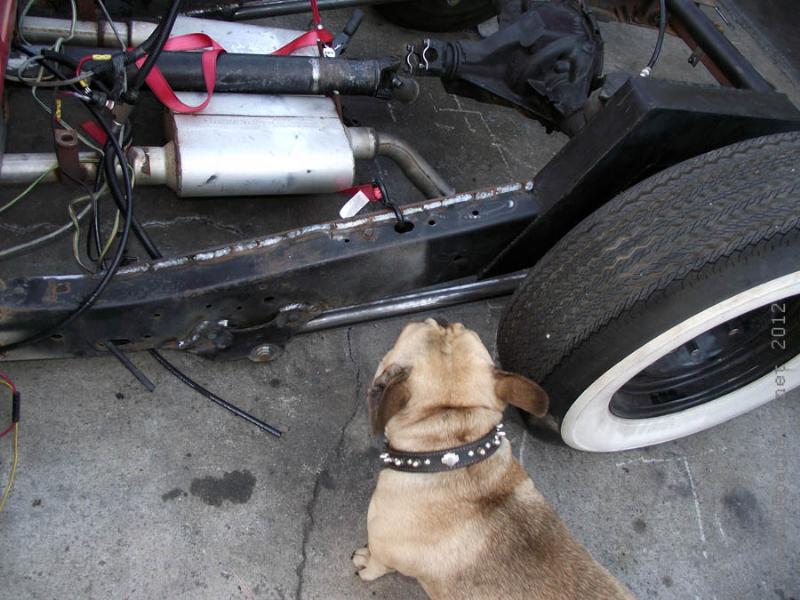

Lower link bar in. Frame plated. Hudson inspected
Lower link bar in. Frame plated. Hudson inspected 2012-07-05

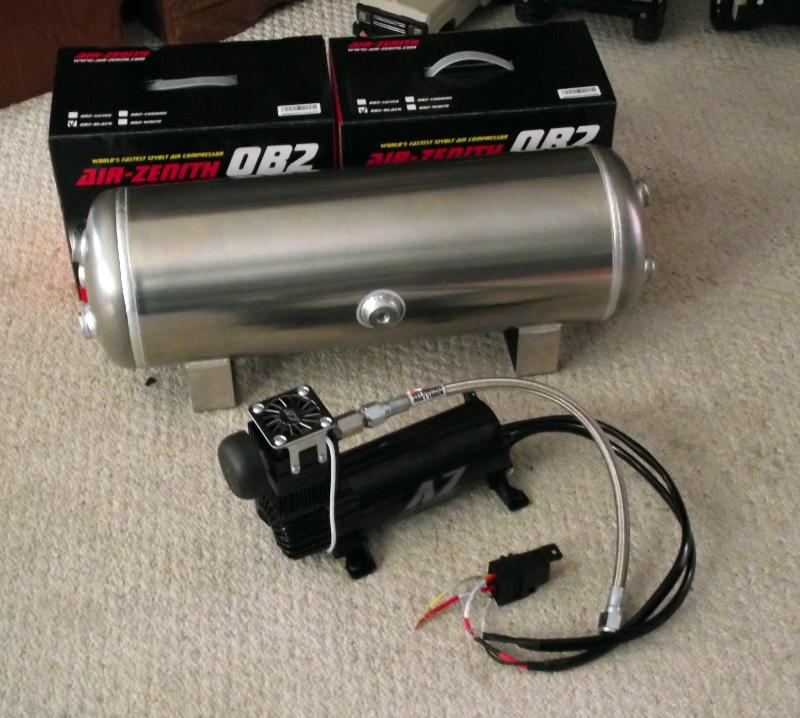

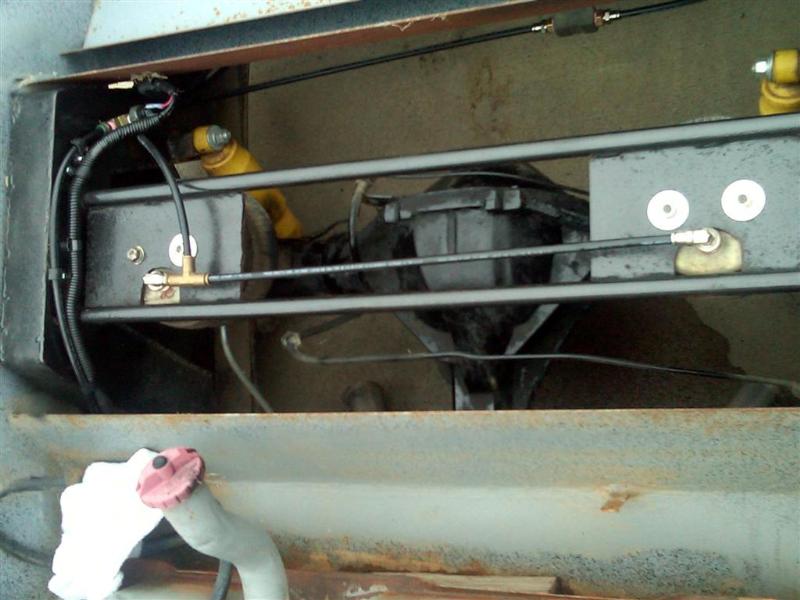

2 Air Zenith OB2 black compressors with one of their 5 gallon aluminum tanks
2 Air Zenith OB2 black compressors with one of their 5 gallon aluminum tanks 2012-07-05

Engine

Drivetrain:
Rebuilt 383 Chevy Small Block
HEI Ignition
huge cam
Edelbrock intake and carb
dual Flowmaster exhaust
350TH trans with shift kit
Huge NASCAR aluminum radiator
15" Extreme Oval Super Breather Air Cleaner with K&N Air Filter
Aluminum Alternator and Power Steering brackets
Serpentine belt
Power Steering with dual fittings for hydroboost and power steering
Steel braided lines
Coolflex radiator hoses

Exterior

Cab:
Shaved
-trim
-door handles
-antenna
-hood emblems
-Gas Filler
bear claw latches in the doors
1955 Buick front bullet bumperettes
1952 GMC turn signals
every body and suspension bushing on this thing is polyurethane

Bed:
molded rear fenders
shaved body seam

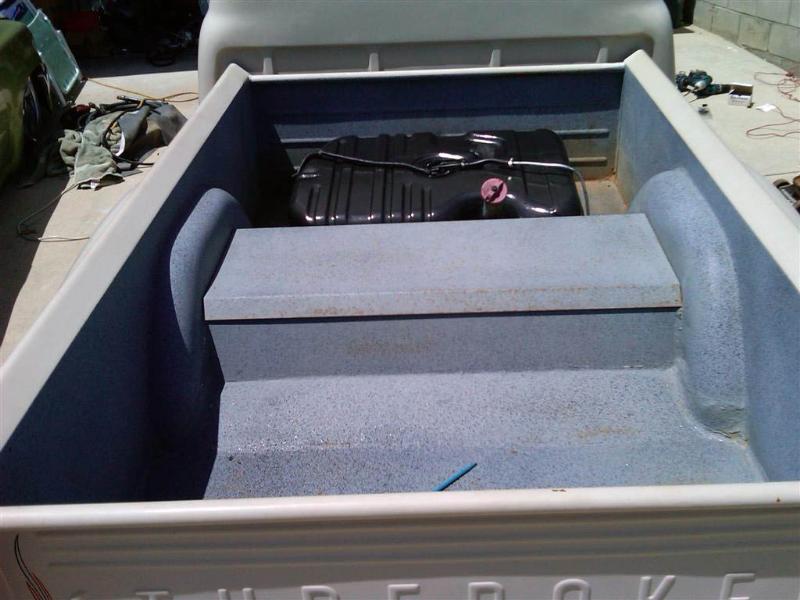

Custom Bedfloor
1996 S-10 inner rear fender wells.
custom
-fins
-roll pan
Molded tail gate
LED Taillights

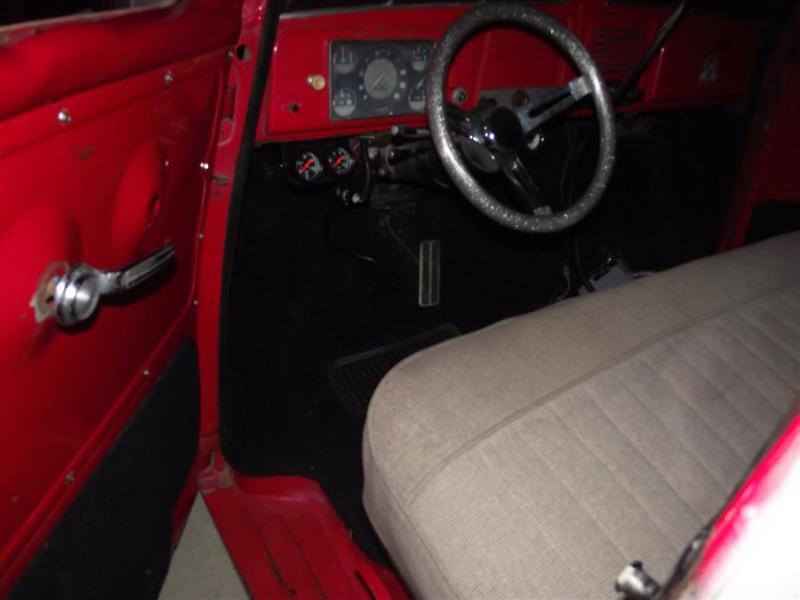

Interior

tweed bench
tilt steering column
Custom interior pieces
Lokar Shifter and boot
Mooneyes Steering wheel
the rest coming soon

Suspension

Suspension:
Air Zenith Compressors
Air Zenith Aluminum air tank
Parallel 4 link
Machined Watts Link
dropped spindles
full air ride
5 Gallon Airtank
250psi fast valves
3/8" airline

Braking:
Hydroboost Brake Assist
S-10 Front Disc
S-10 Rear end
-Disc Brakes
-3.73 gears
-Posi

Wheels

Steel Wheels
G-78-14 wide white walls

Stereo

Very Loud Engine

Awards

Thumbs up from hotrodders and having all types of people ask me about it.

Future Plans

Finish redoing the suspension. Lots of cleaning detailing and painting.
