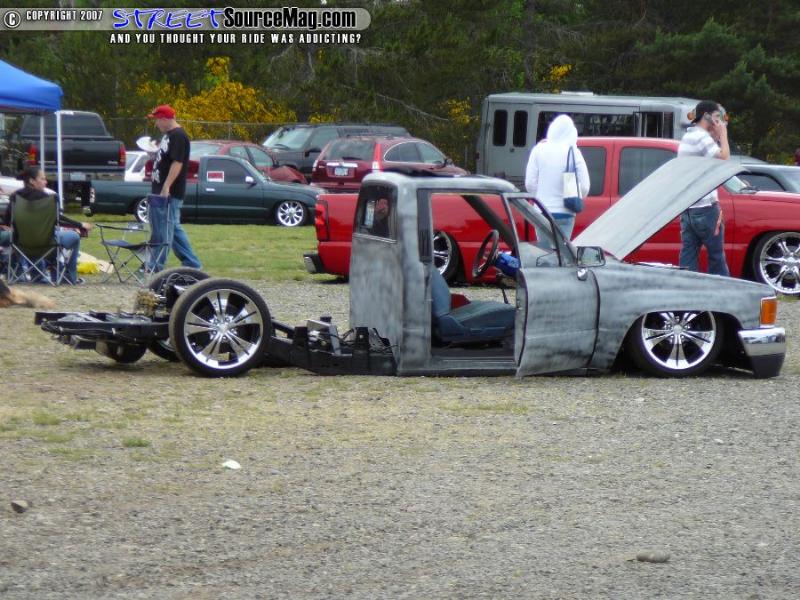

Lowdown 2008
2008-09-25
Lowdown 2008
2008-09-25
Lowdown 2008
2008-09-25
Lowdown 2008
2008-09-25
Lowdown 2008
2008-09-25
Lowdown 2008
2008-09-25

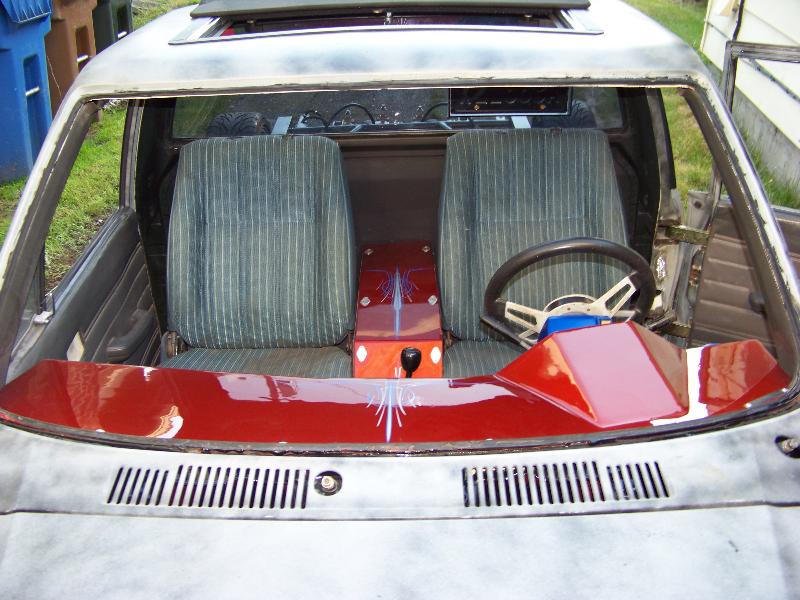

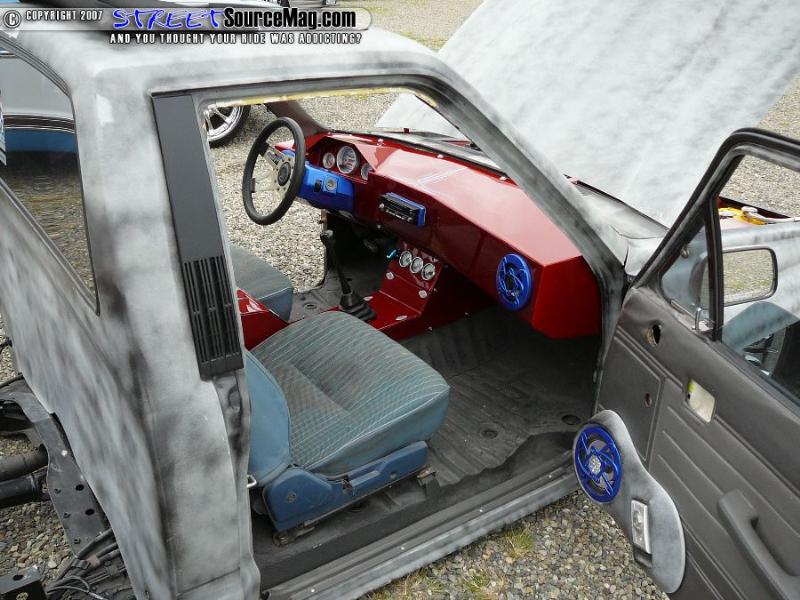

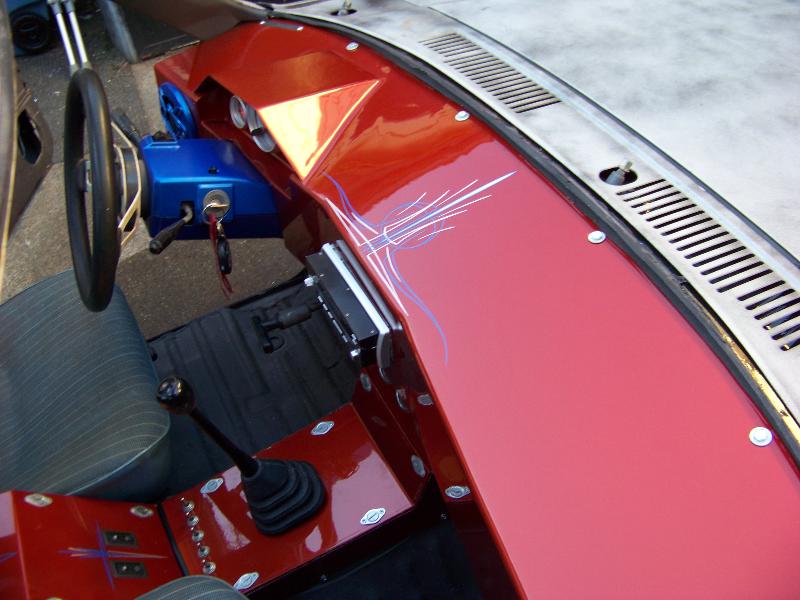

almost done with the new dash
2008-09-25
almost done with the new dash
2008-09-25
almost done with the new dash
2008-09-25

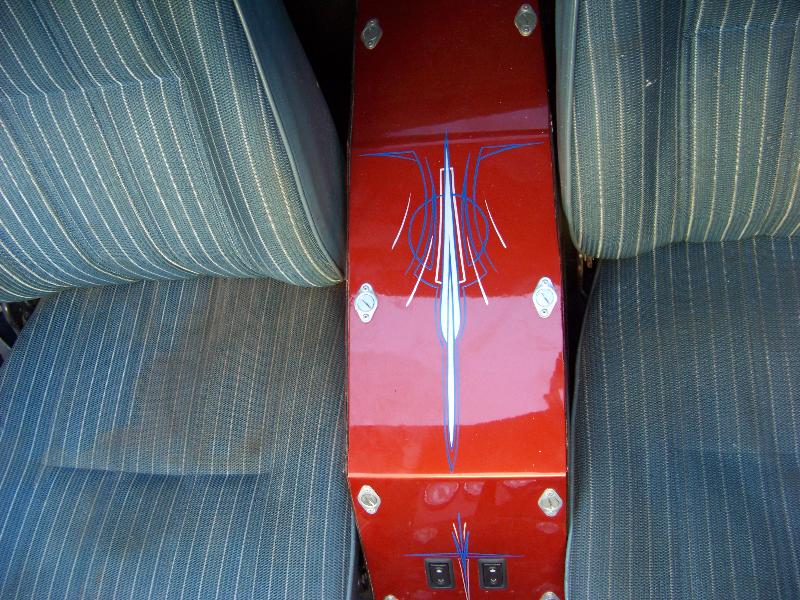

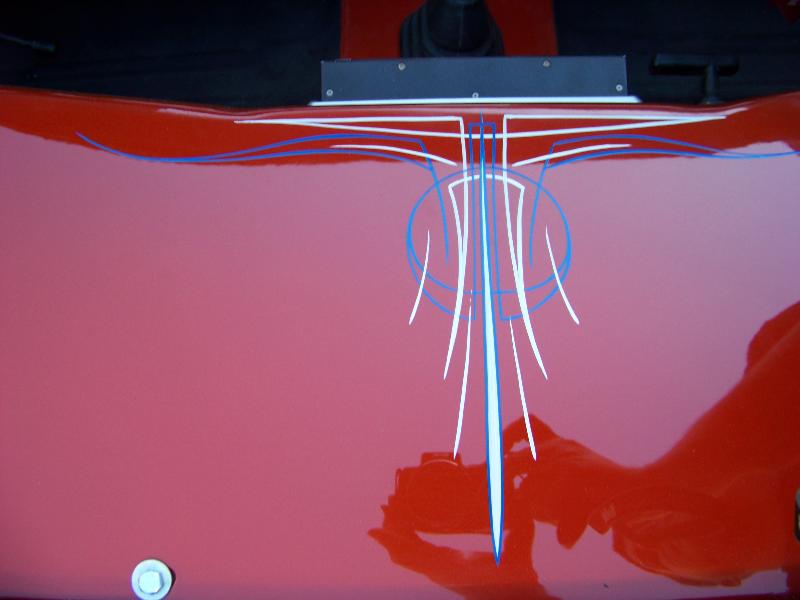

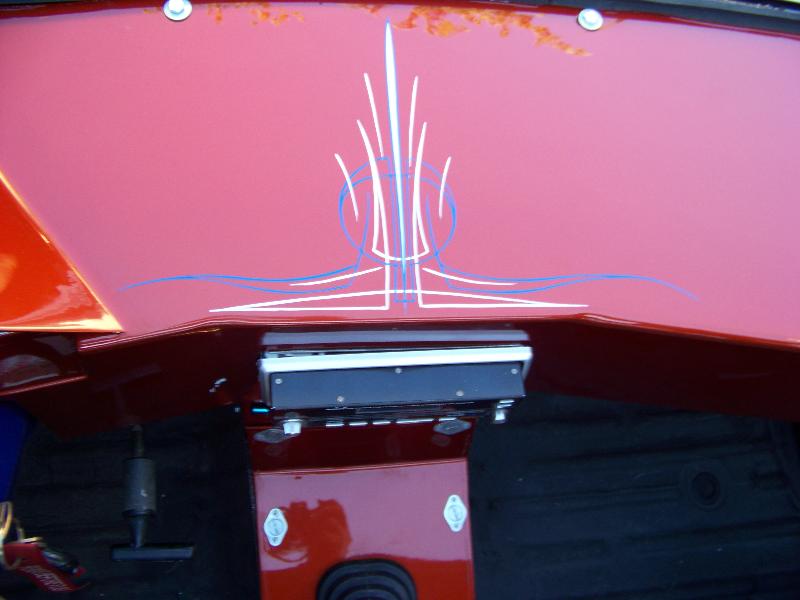

pinstriping by josh @ jonespaintin.com
2008-09-25
pinstriping by josh @ jonespaintin.com
2008-09-25
pinstriping by josh @ jonespaintin.com
2008-09-25
almost done with the new dash
2008-09-25
pinstriping by josh @ jonespaintin.com
2008-09-25

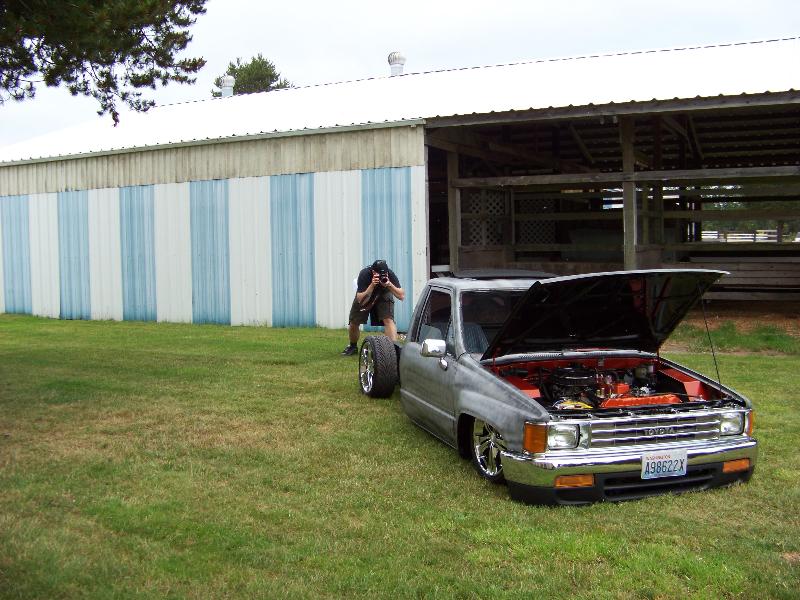

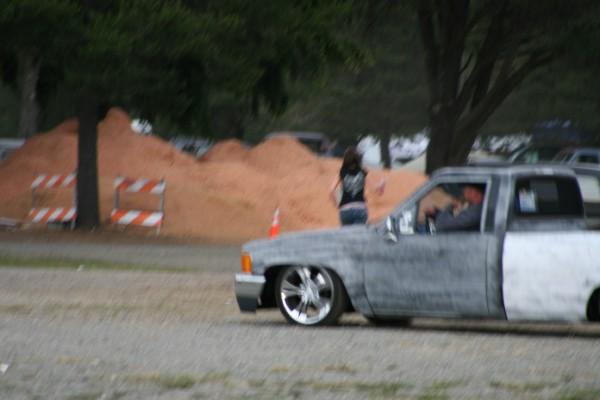

MT Construction Zone shoot
2008-09-25
MT Construction Zone shoot
2008-09-25

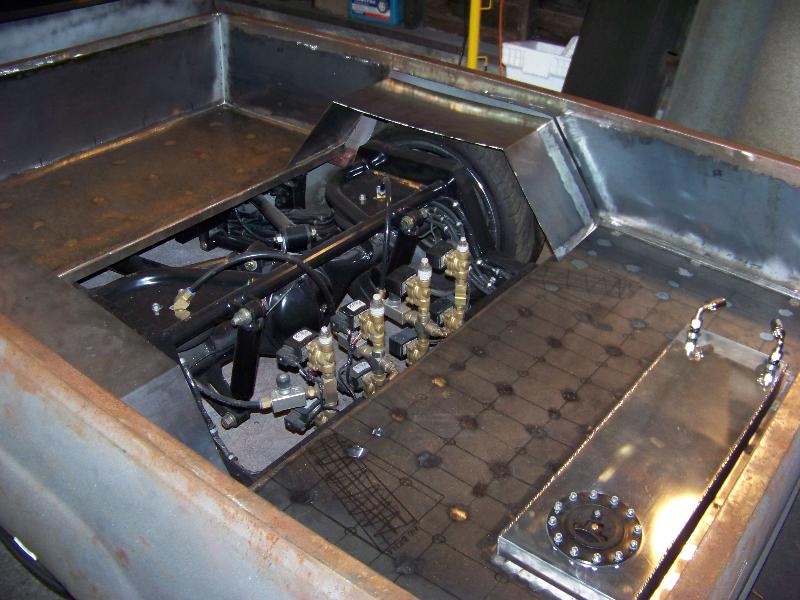

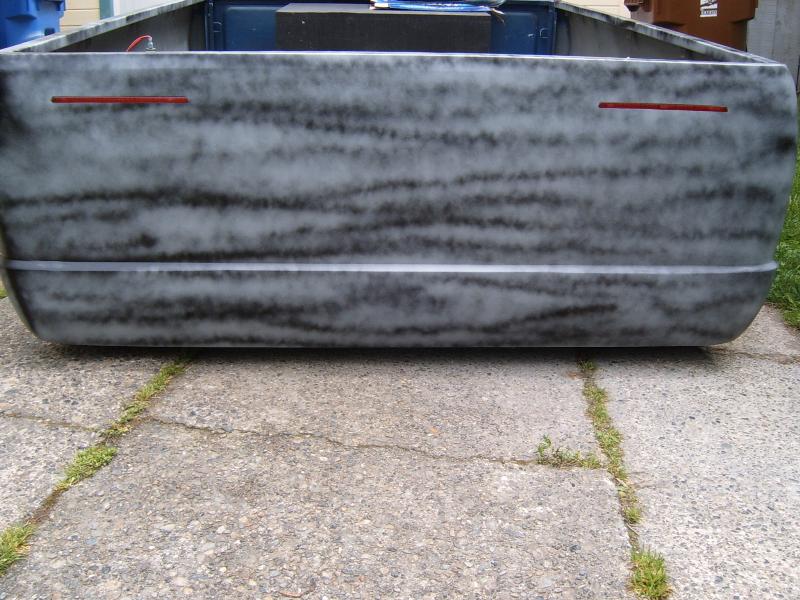

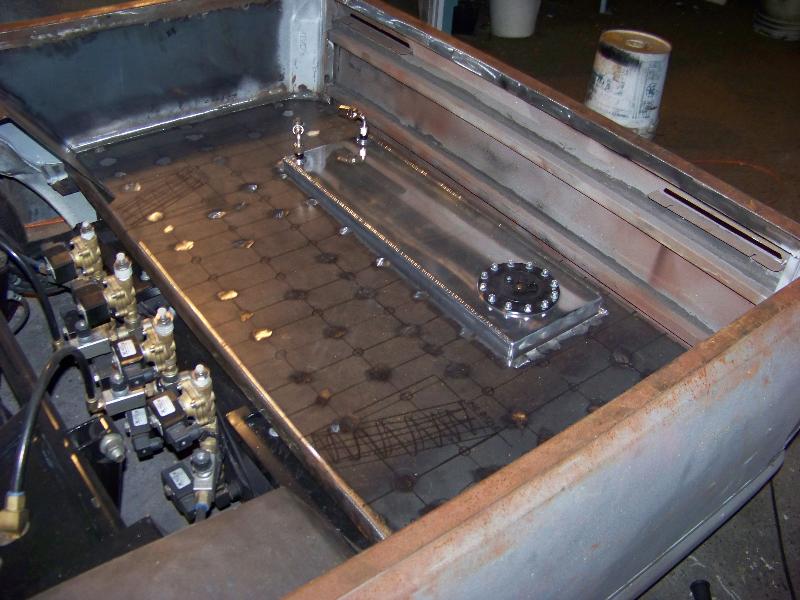

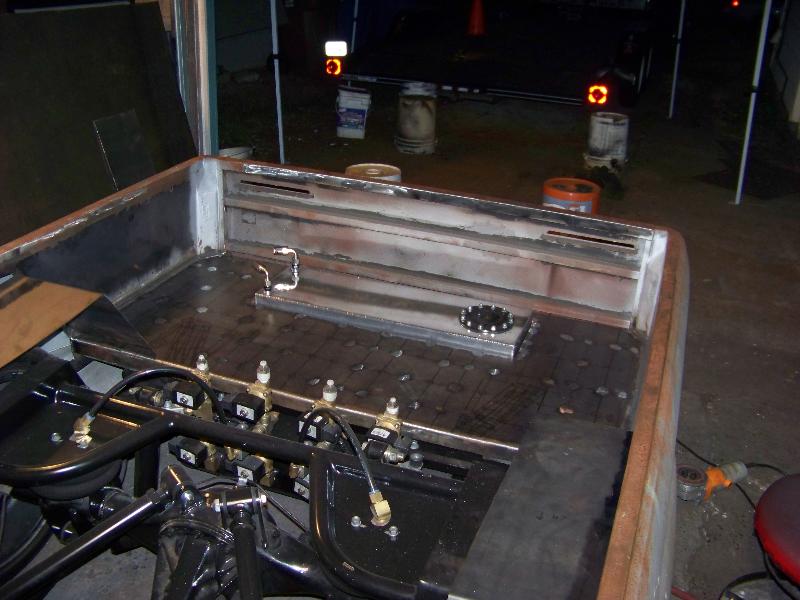

new bed sneak peek
2008-09-25
new bed sneak peek
2008-09-25
new bed sneak peek
2008-09-25

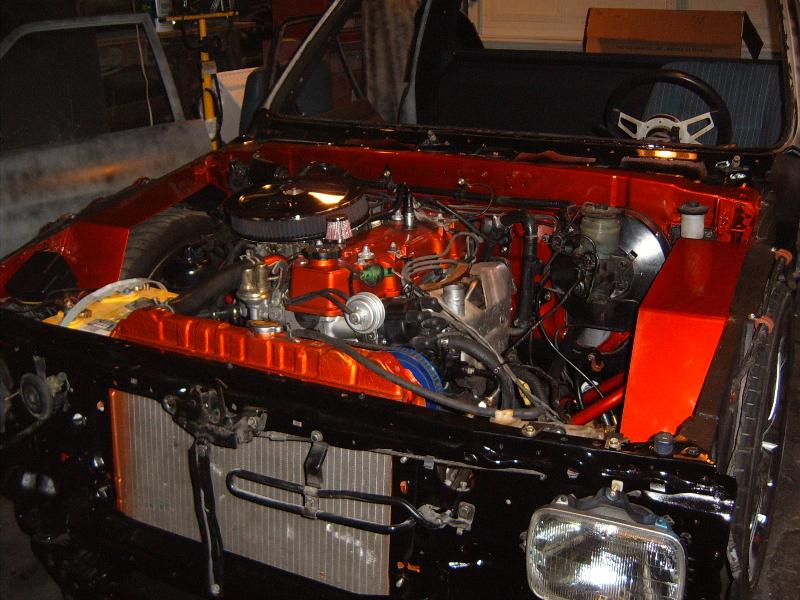

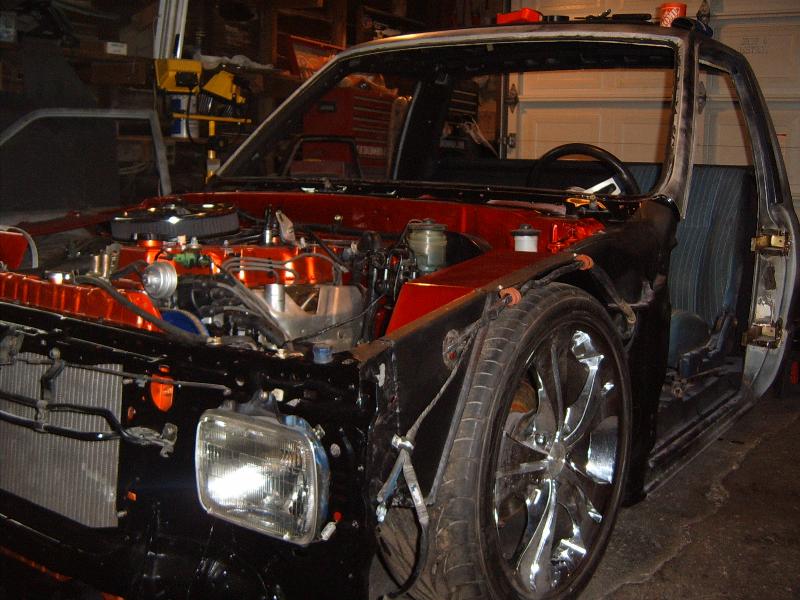

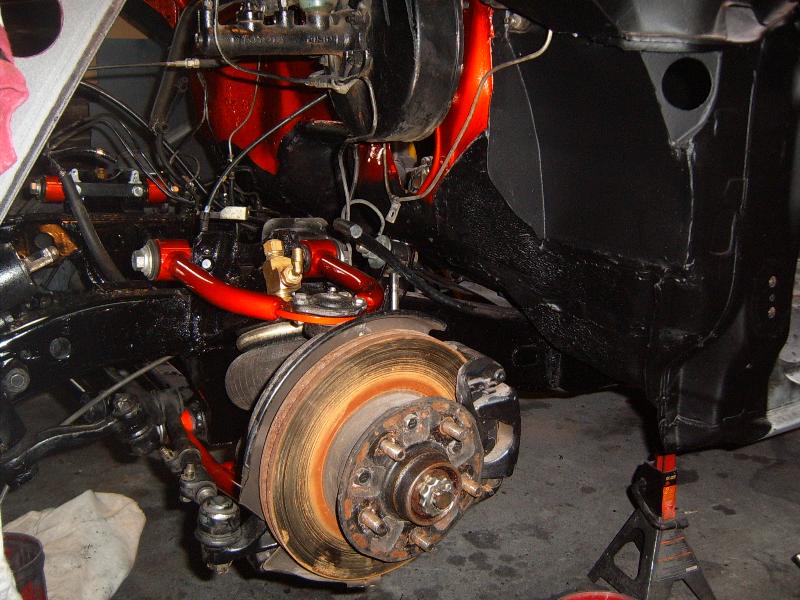

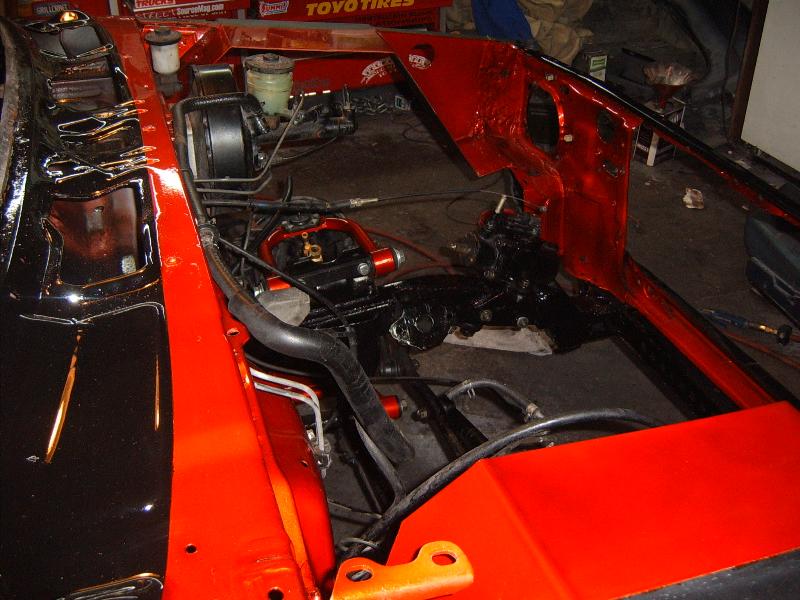

forgot to get pics prior to reassembly
2008-02-04
forgot to get pics prior to reassembly
2008-02-04
forgot to get pics prior to reassembly
2008-02-04
2008-02-04
2008-02-04

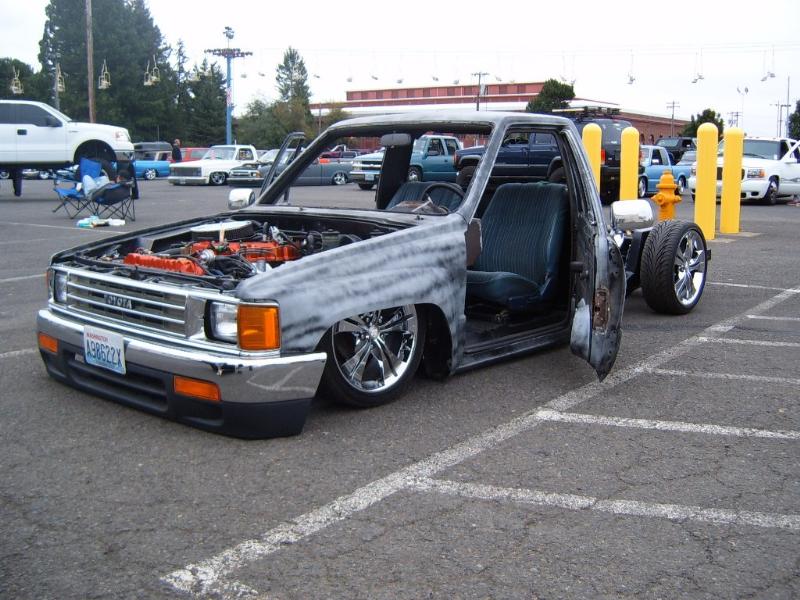

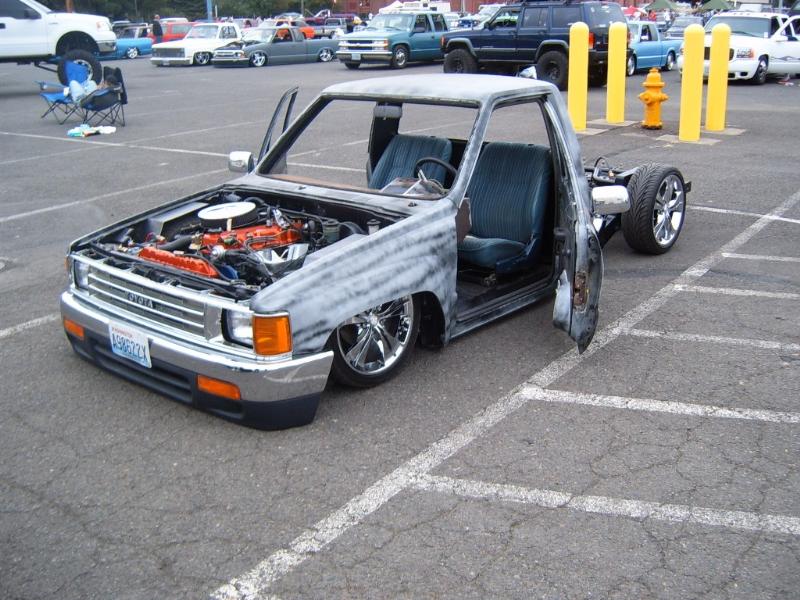

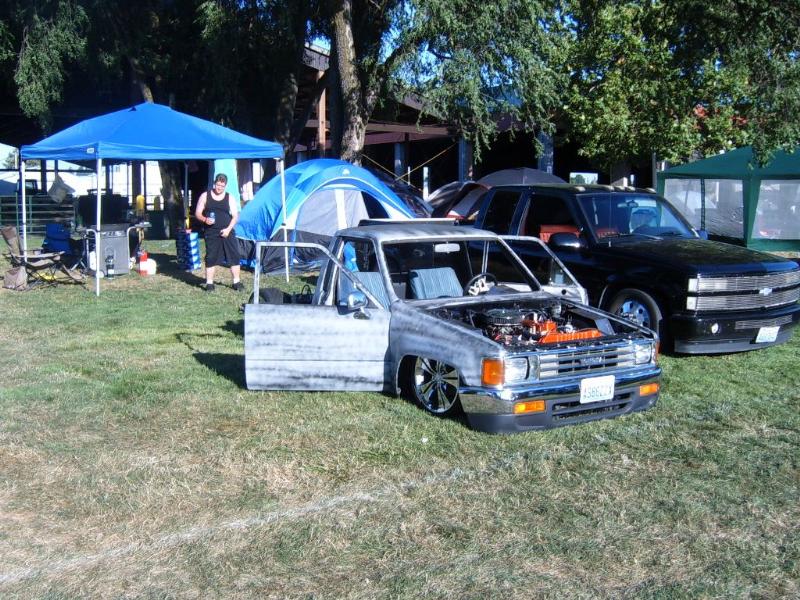

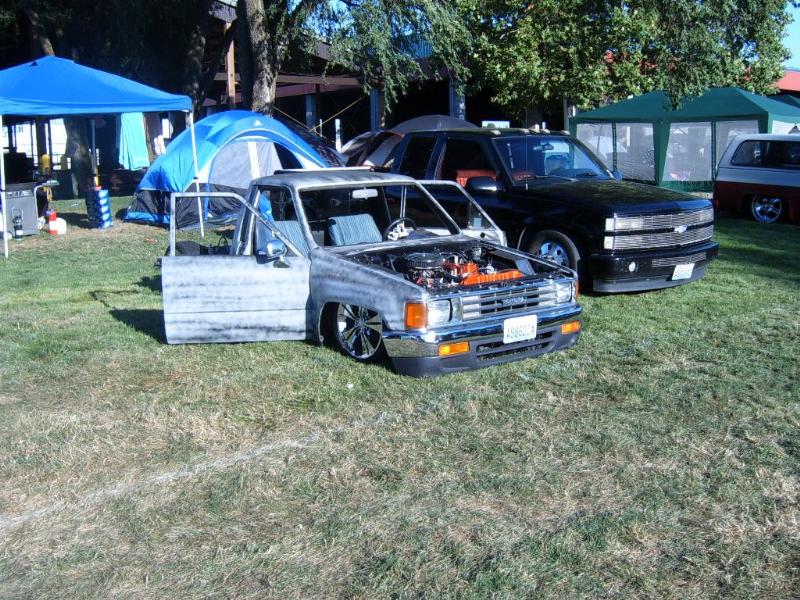

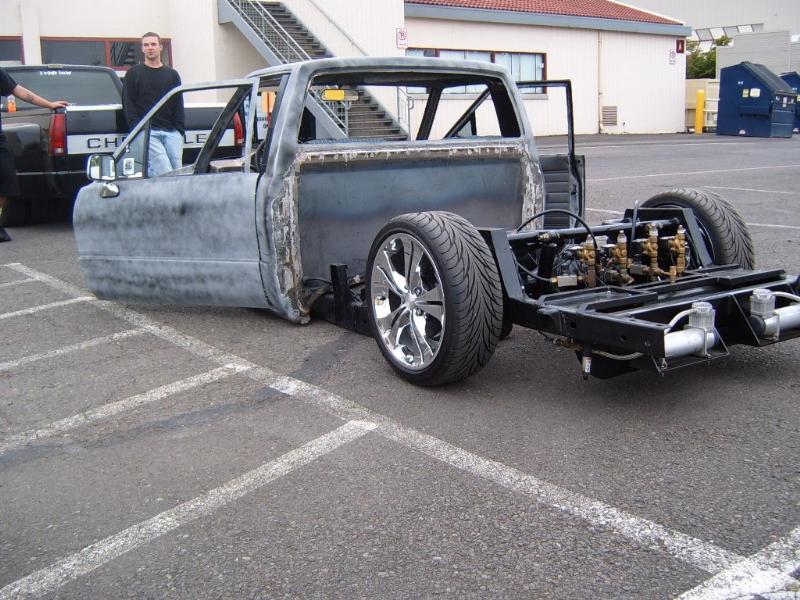

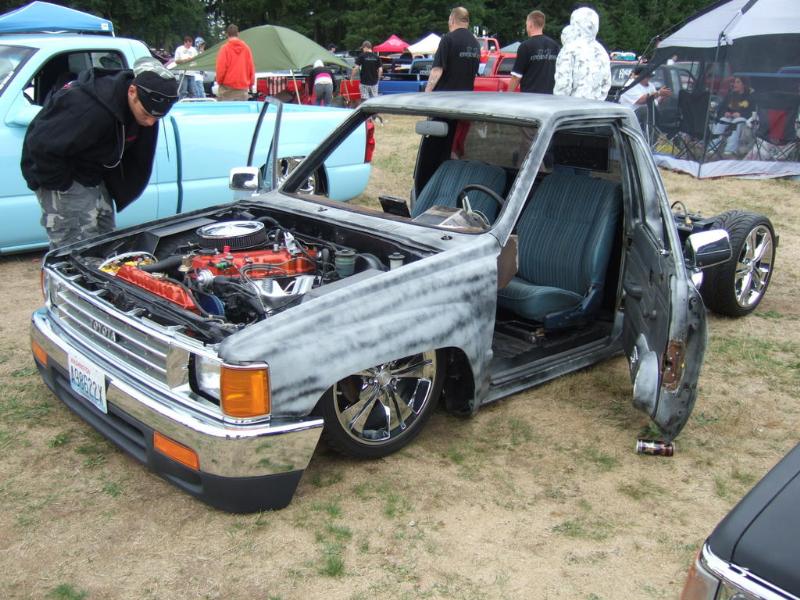

Drop Zone 2007
2007-08-19

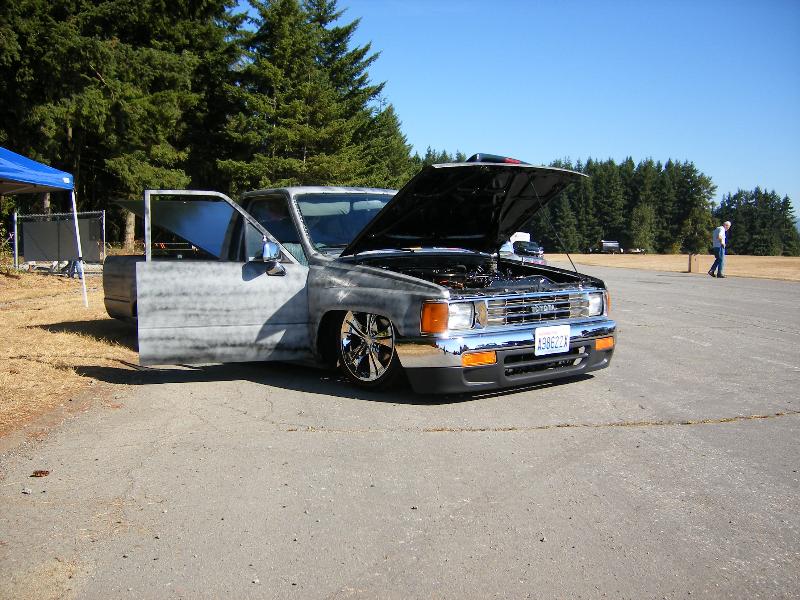

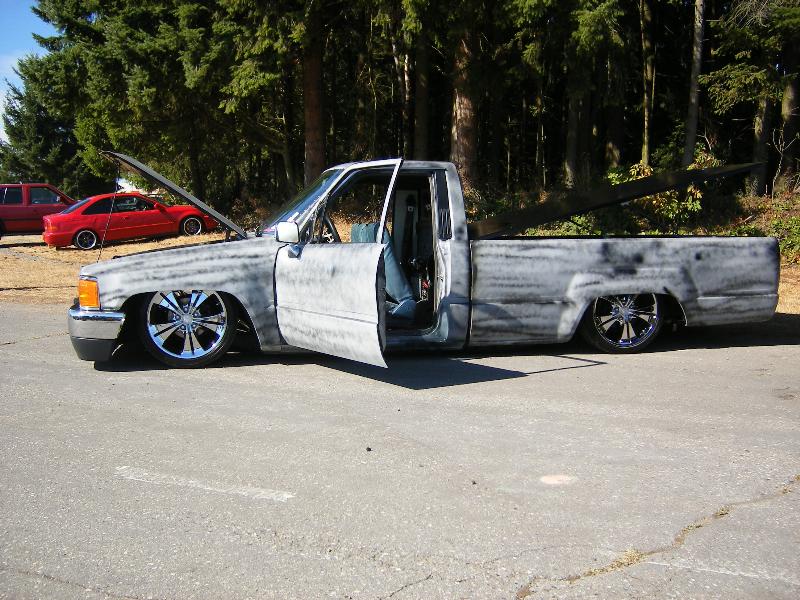

Sittin' Pretti 2006
2006-09-22
Hack job when i got it.
2004-05-05
Sittin' Pretti 2006
2006-09-22
Sittin' Pretti 2006
2006-09-22
Draggin
2006-09-22

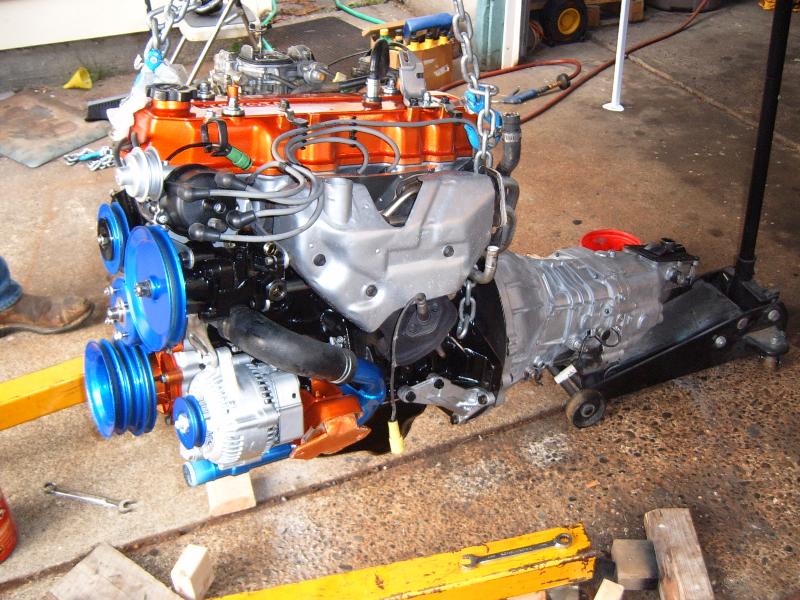

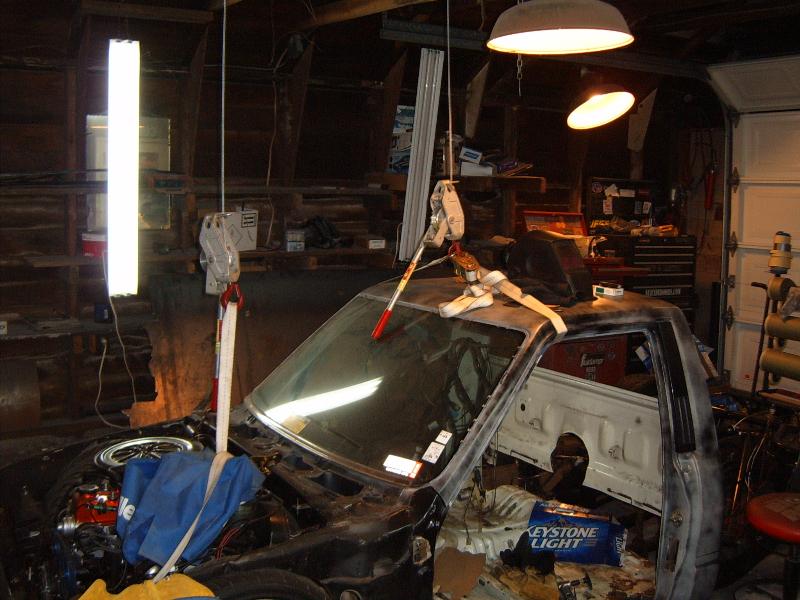

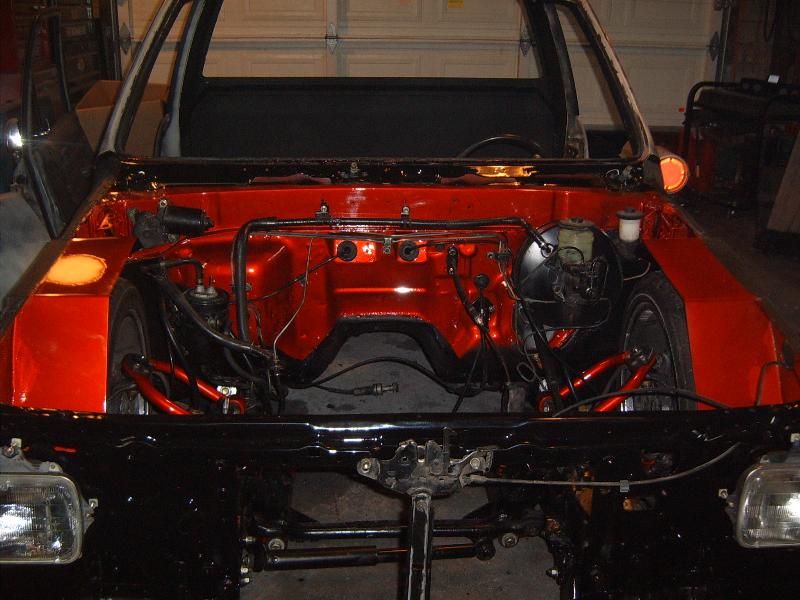

Pulled the motor to clean & paint it
2006-09-22
2007-02-25
2007-02-25
2007-02-25
Sittin' Pretti 2006
2006-09-22
Sittin' Pretti 2006
2006-09-22
Sittin' Pretti 2006
2006-09-22
2005-05-10
2006-07-24

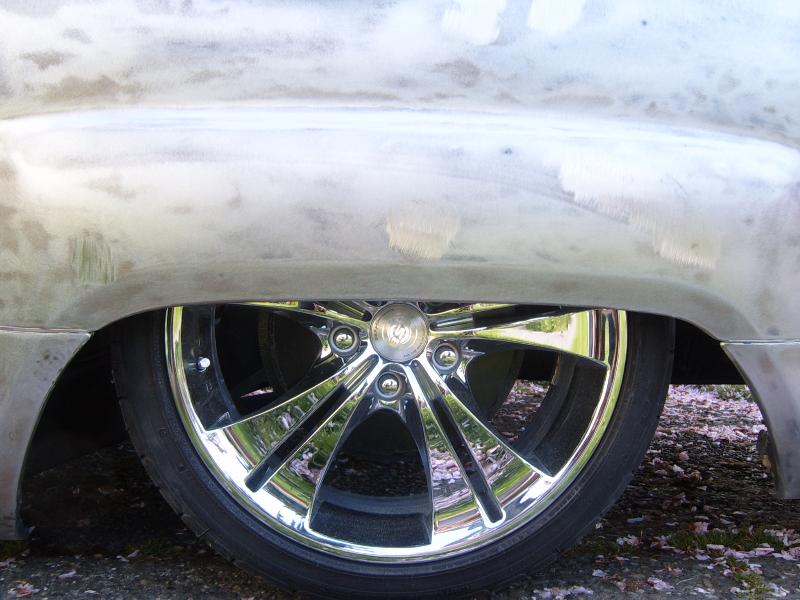

Tukin nuts on 17's!
2005-04-25
2005-05-10
Sittin Pretti 2007
2007-08-26
Sittin Pretti 2007
2007-08-26
Drop Zone 2007
2007-08-19
Drop Zone 2007
2007-08-19
Drop Zone 2007
2007-08-19
Drop Zone 2007
2007-08-19
Drop Zone 2007
2007-08-19
2008-02-04

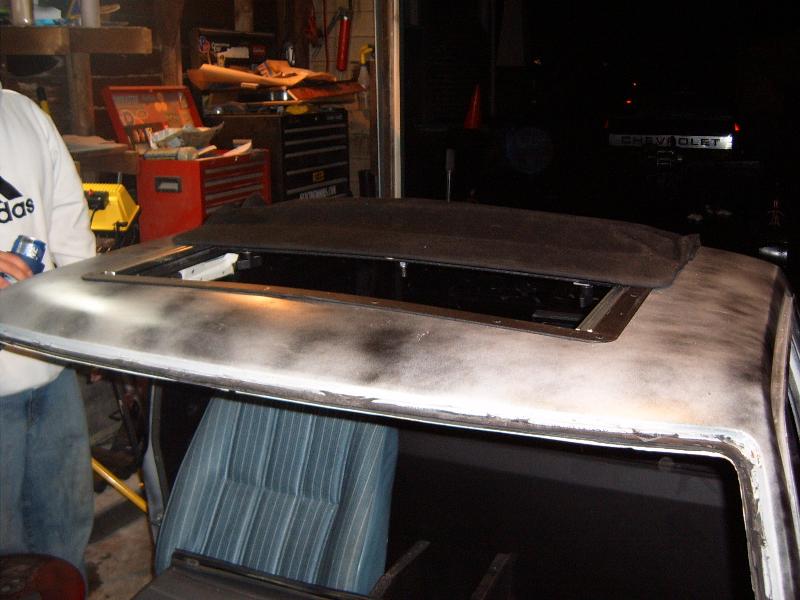

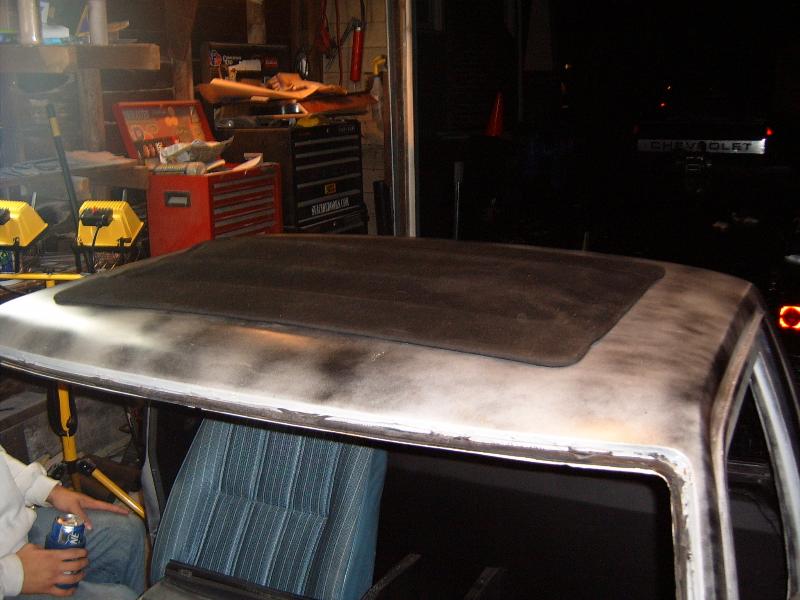

tiny, pathetic little rag top
2008-02-04
tiny, pathetic little rag top
2008-02-04
the perfect sticker
2008-02-04
2008-09-25
2008-09-25
2009-08-14
2009-08-14
2009-08-14
2009-08-14
2009-08-14
2009-08-14
2009-08-14
2009-08-14

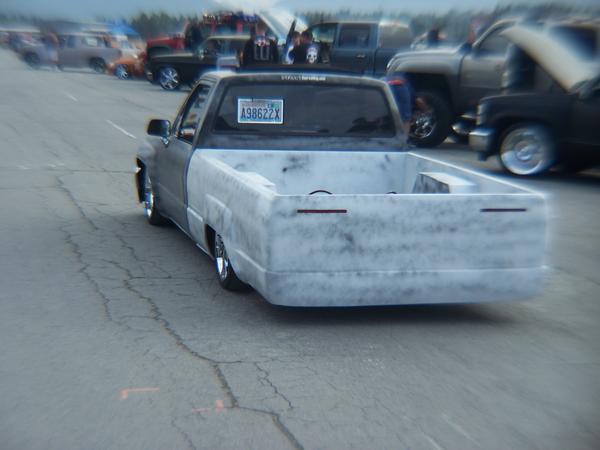

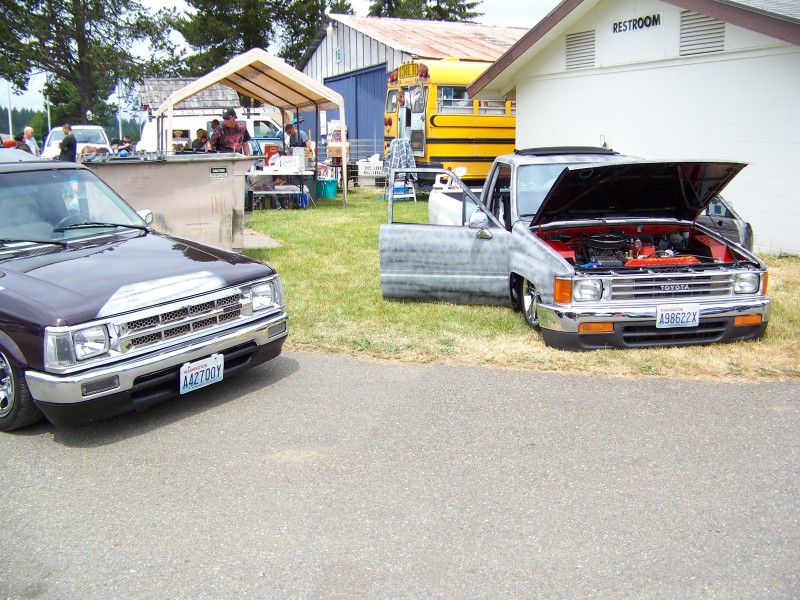

sittin pretti 09
2009-09-01
Engine

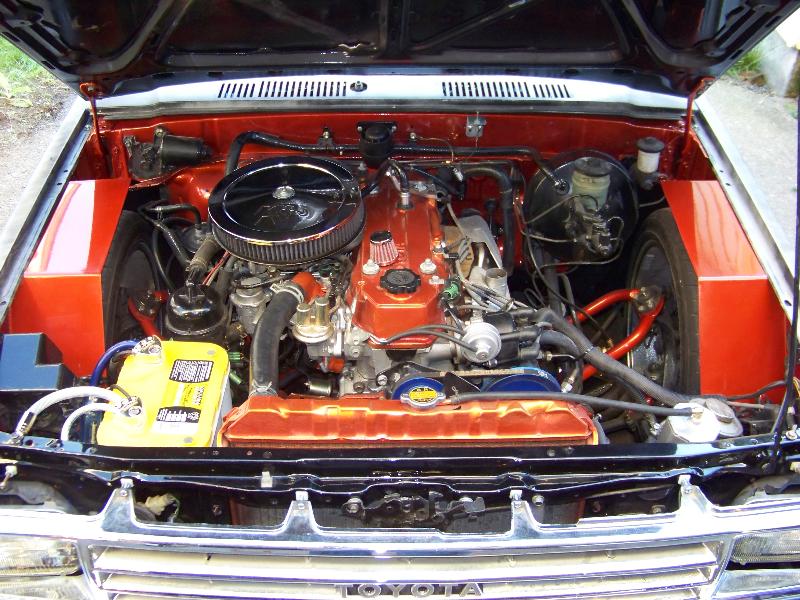

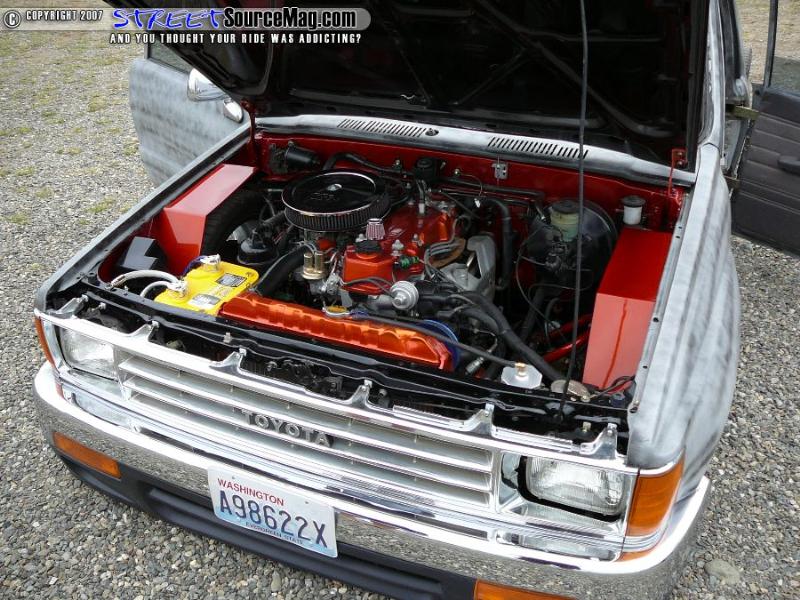

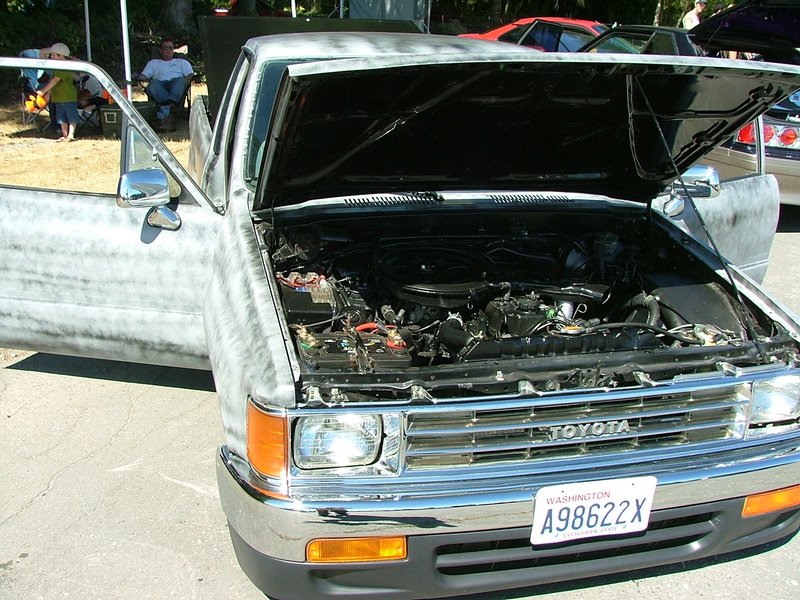

22r bored out to 4" (yes 350 flat top pistons) with badger sleeves, cross drilled water jacket between cylinders for cooling, shaved head with 2 links out of timing chain, OCG cam, centerforce clutch, lc distributor, and many other misc things, painted HOK kandy tangerine & cobalt blue over silver base. OH YEAH!! FITS UNDER THE STOCK HOOD W/O A Z & W/O LOWERING THE MOTOR!!
Exterior

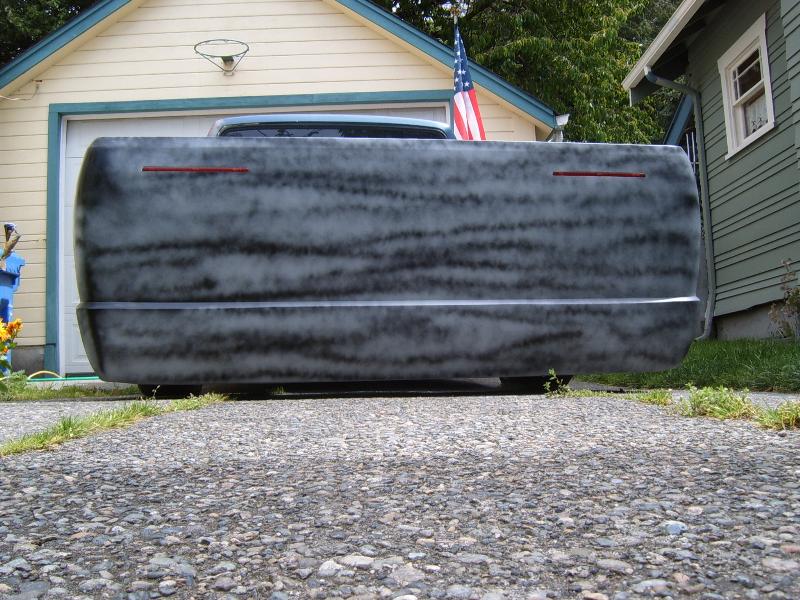

2& 3/4" traditional bd past pinch, suicide driver door, shaved everything, smooth back wall, american loooooongbed (came with japanese bed), 4x4 fenders, 95 4runner bumper, small-ass-pathetic rag top, smooth ass end w/led's STOCK HOOD!!!
Interior

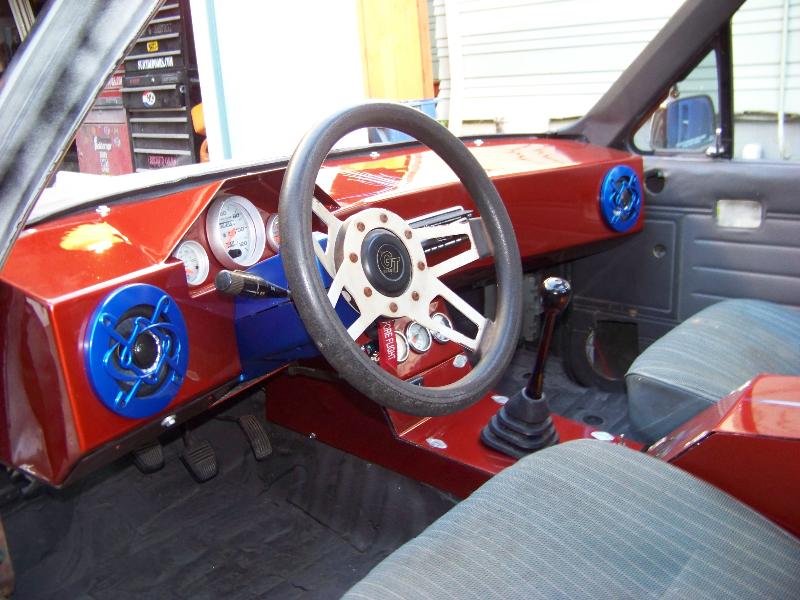

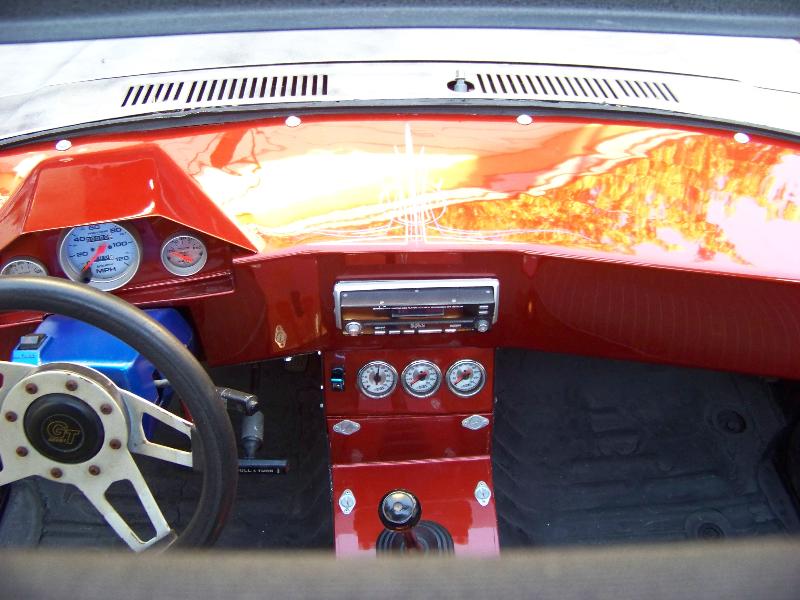

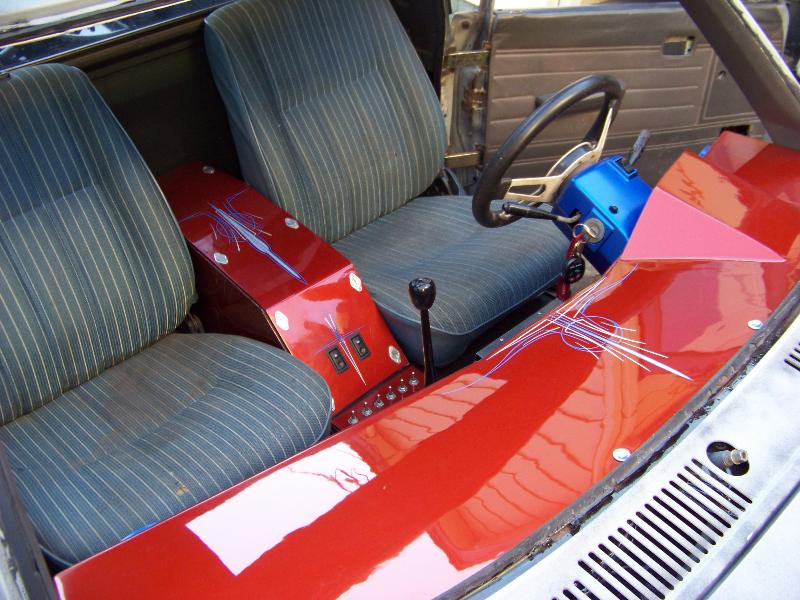

sheet metal dash w/autometer pro comp ultra lite gauges & center console with mr2 buckets & smooth back wall, fiberglass system

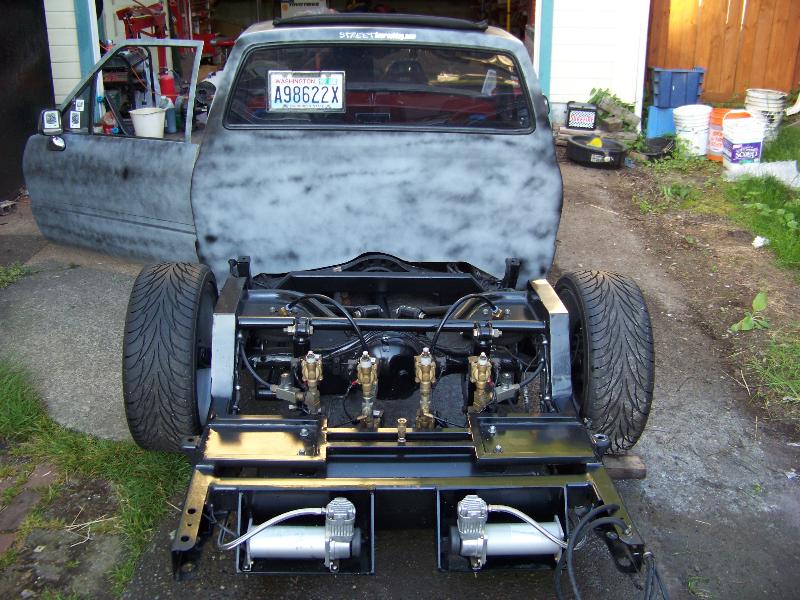

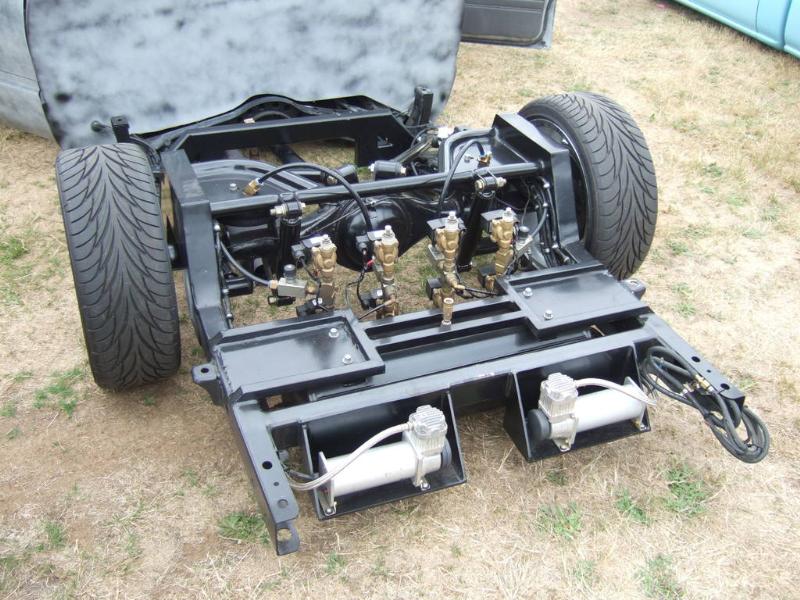

Suspension

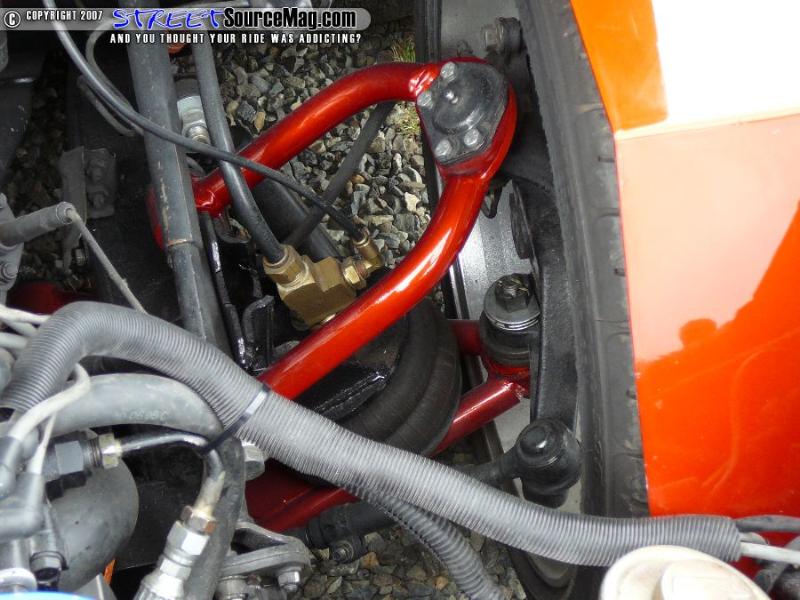

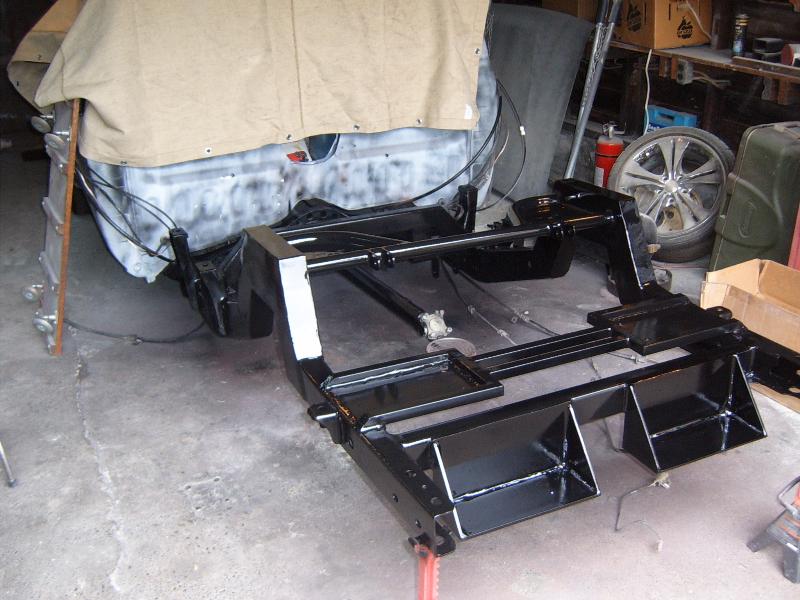

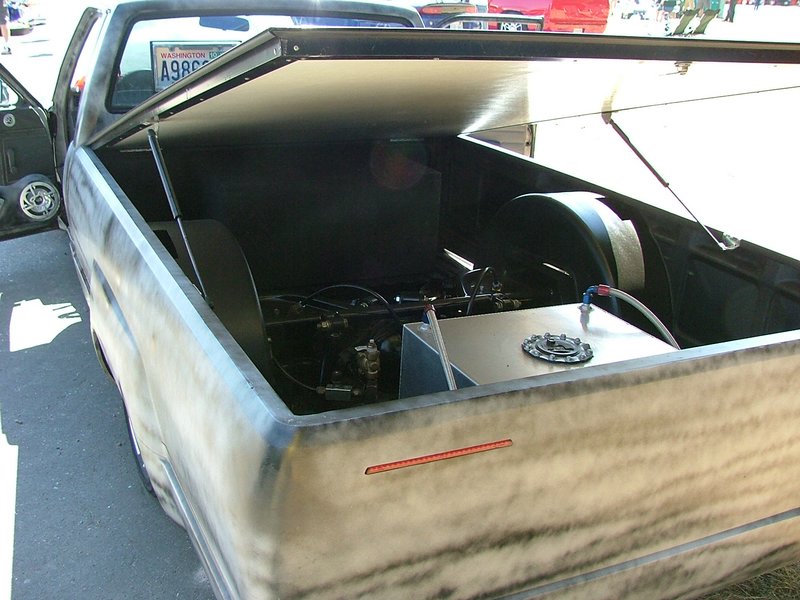

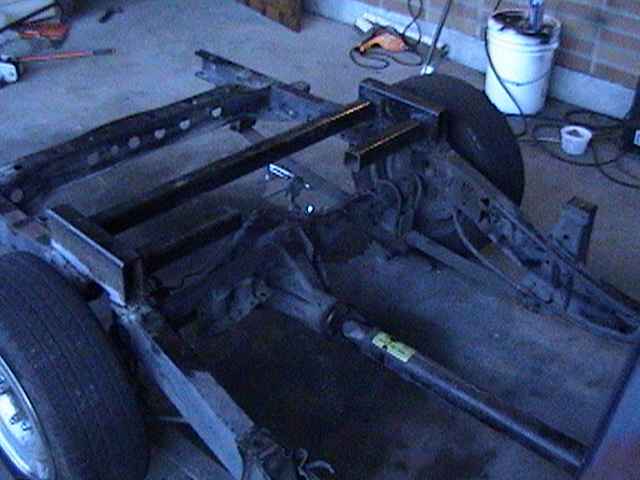

i saved its life from the pathetic notch and front & rear air shock setup (YES, I SAID AIR SHOCKS!!!) by using conitechs, GC 1/2" valves, notch, 4 link, tube upper & lowers, hand made tranny x-member, frame extended to fit longbed, & custom made 2 piece driveline w/ stock carrier bearing & crossmember added to frame (no z)
Wheels
17" chrome bsa 322's 205/40r17

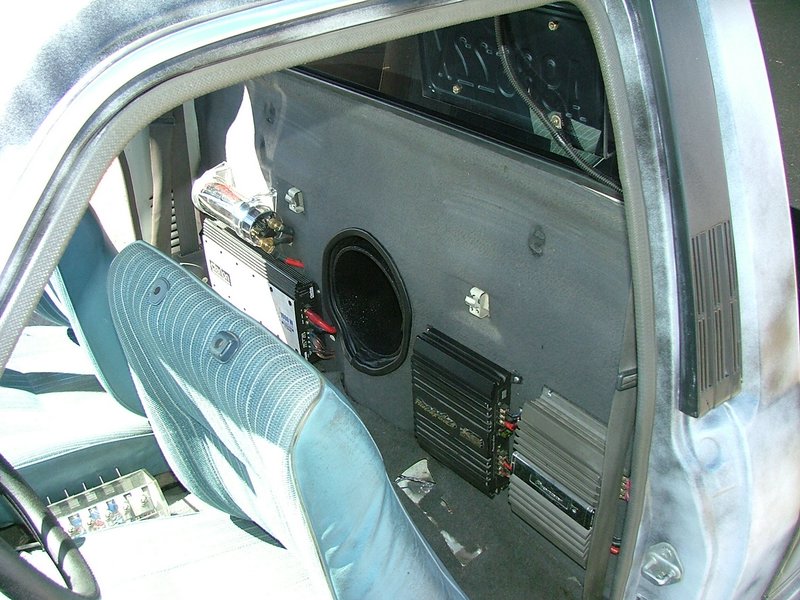

Stereo
glass door pods, sub enclosure & amp racks/cap enclosure, dvd monitor deck, all mtx gear, 6.5" components in doors, 4" coax in dash, 2 slimline 12's, 1200w sub amp, 600w high end amp, 8 farad cap, yellow top optimas
Awards
longest buildup in history award
Future Plans
paint it if i can stop coming up with new ideas!
