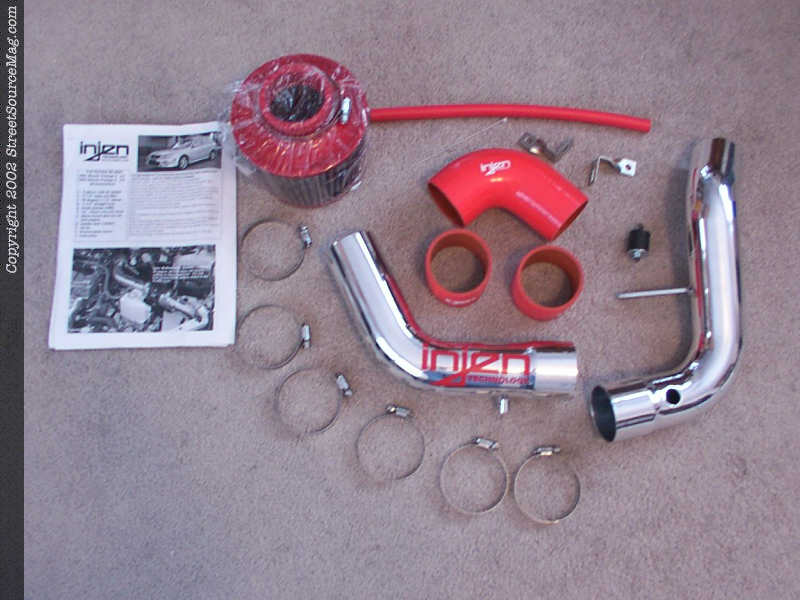

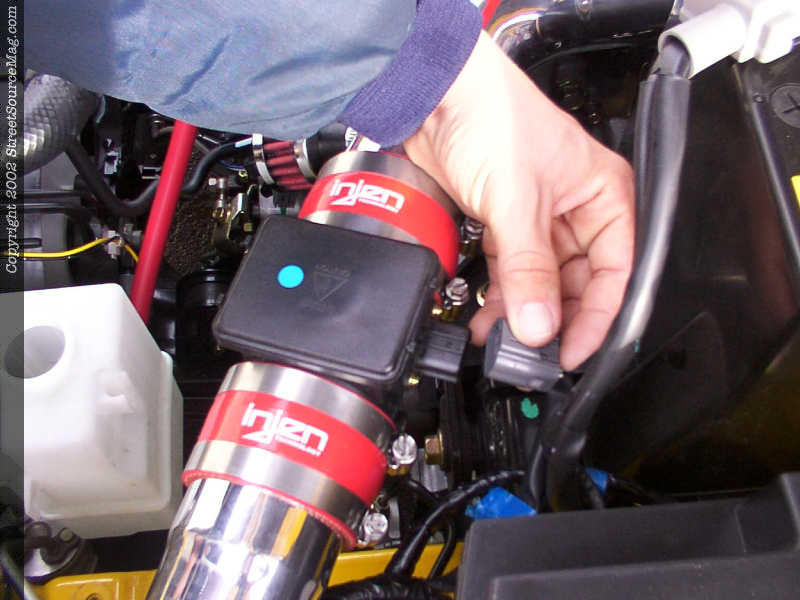

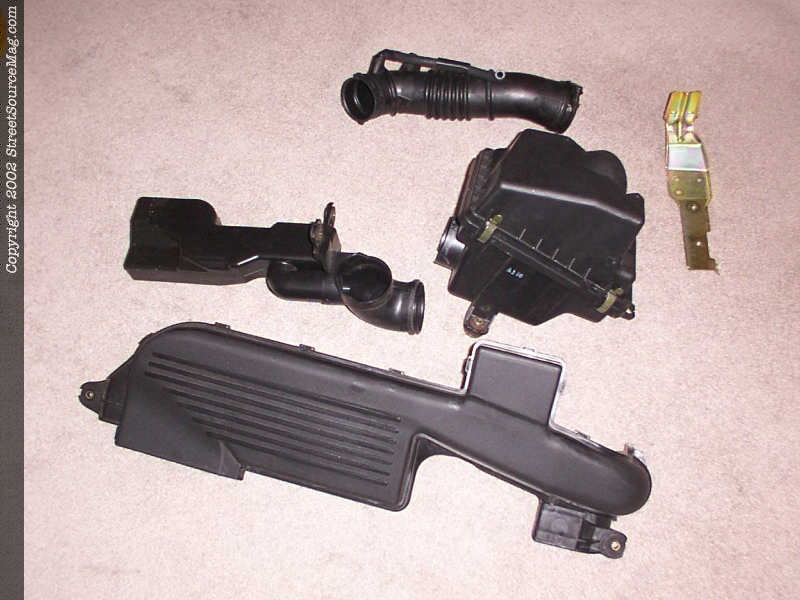

Step 1-Check to make sure everything is with the kit and nothing is damaged. Step 2- Here are all the factory parts that had to be removed. Compared to the first picture, the factory unit is more than twice the size of the new intake. Step 3-After installing the new intake pipe per instructions on your particular vehicle, make sure all your air sensors are plugged backed in.
|

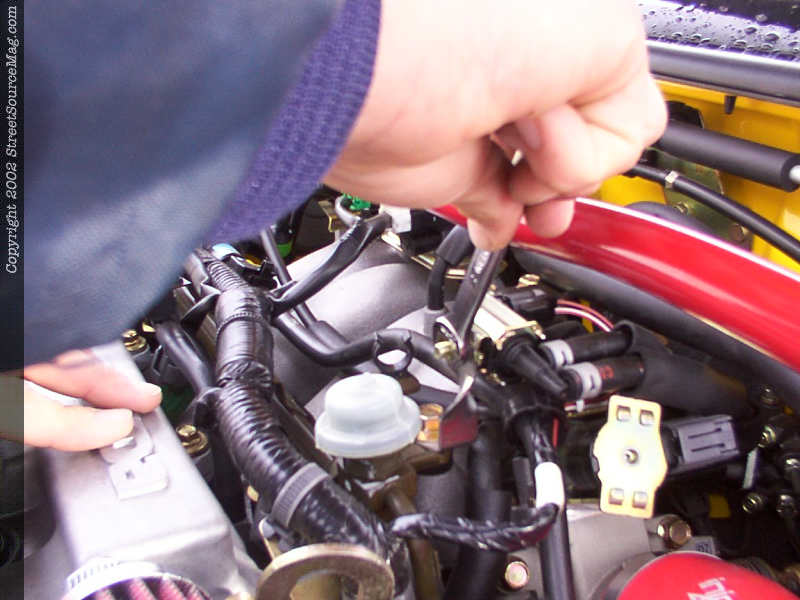

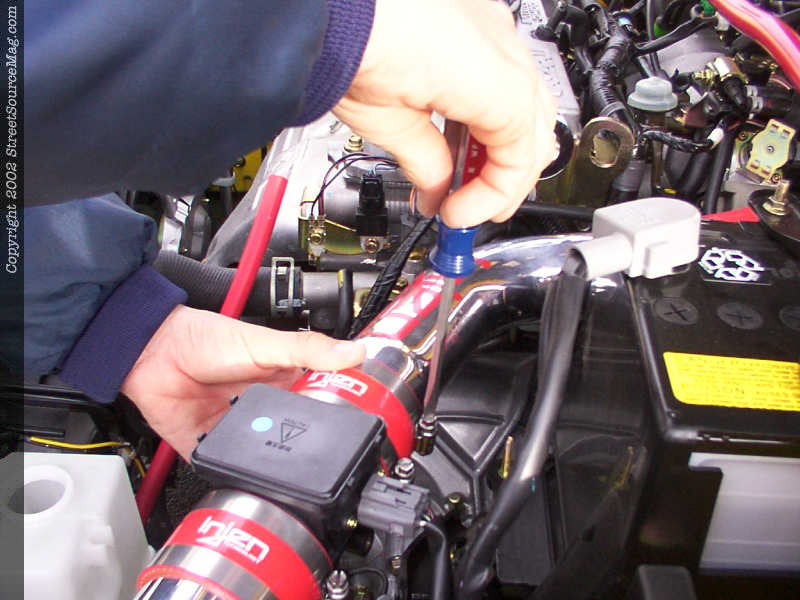

Step 4-Once you have all the piping, boots and fittings installed and lined up, tighten all the clamps to keep the intake from moving once you finished the installation. Step 5-In some vehicles, certain brackets have to be relocated to allow clearance or because they mounted to one of the factory intake parts. Step 6-The filter mounts behind the front bumper to allow cold, fresh air to reach the engine instead of hot air off of the motor. Most instructions say that you have to remove the front bumper, but all you need to do is remove part of the inner fender and plastic that covers the under side of the bumper. That should allow you enough room to reach the clamp on the filter.
|
