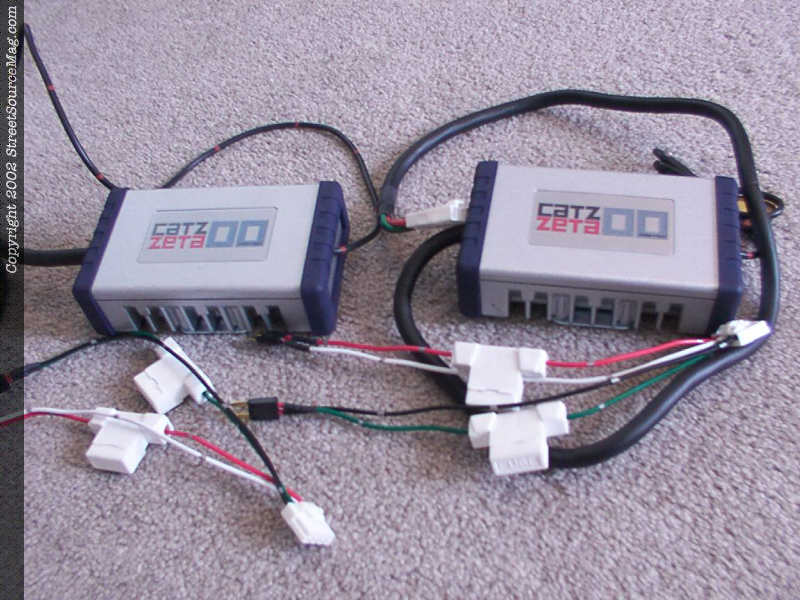

 ZETA INSTALL-The ZETA kit from CATZ is a headlight enhancer that ads 70% more power to your headlights. It is considered the "poor mans HID". It's much cheaper than doing a full HID conversion. The Zeta kit only costs about $215 verses the couple thousand it would cost for a true HID conversion. It is probably the easiest addition I've put on my car. It took longer to find a place to mount the ballasts than it did to actually hook it up. After I installed the intake, it freed up enough room to mount the ballasts where they could be seen yet be out of the way enough to be safe. I noticed a big difference the first night I drove it with the Zeta kit installed. My windshield is tinted and I couldn't even tell with this kit.Step 1-Here is what the kit looks like out of the box.
|

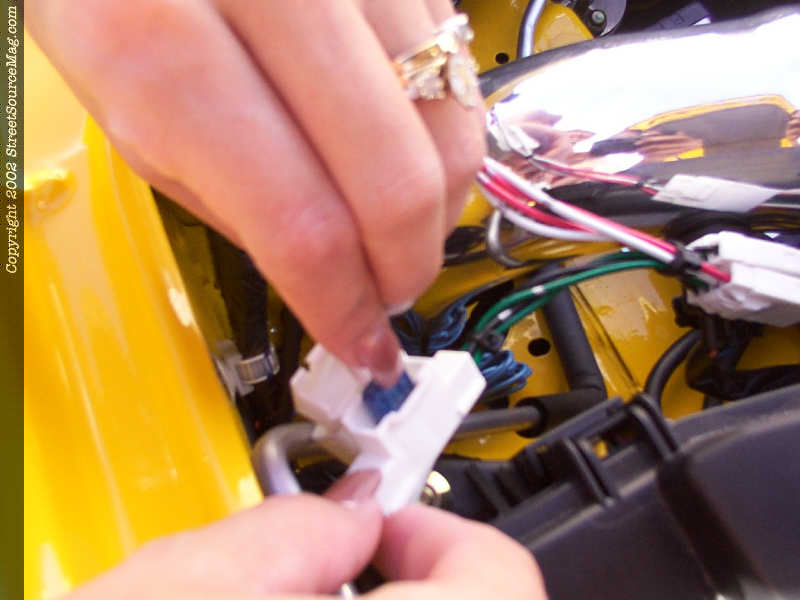

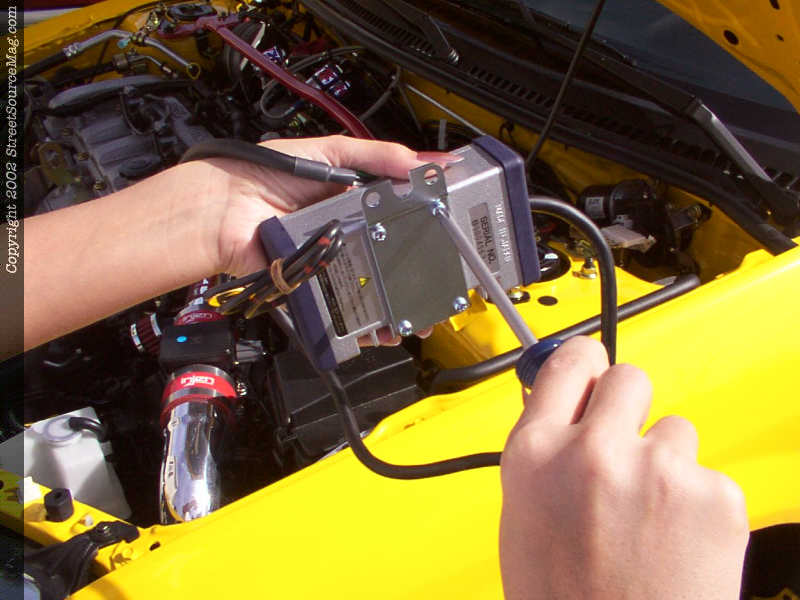

Step 2Screw the mounting bracket to the back of both ballasts Step 3After removing the factory headlight fuse for the bulb, place it into the fuse holder of the black/green leads of the Zeta ballast. (The red/white leads are for the high beam.) Step 4Plug the fuse looking plug on the end of the green/black leads into the same hole you removed the factory fuse from earlier. Make sure to observe polarity; the green wire must be on the positive side of the fuse. Follow the same steps for the high beam on that side and for both bulbs on the other side of the car. Some cars will only be able to use just the low beams because the ballasts can only handle one bulb at a time. If your low beams stay on while your high beams are on or you don't have 2 separate high beam fuses, that will be your only option.
|
